AllerGard NU-608 Class I Animal Refuse Station

The NU-608 cage dumping station applies the theory of Class I containment to the practice of a Vivarium by integrating a work surface with waste chute into a mobile, efficient, and safe total exhaust cabinet.

Overview

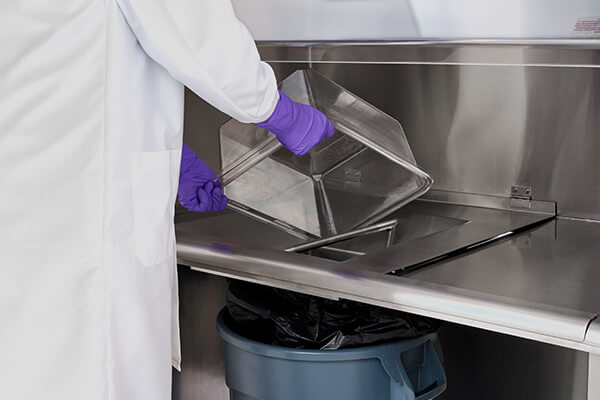

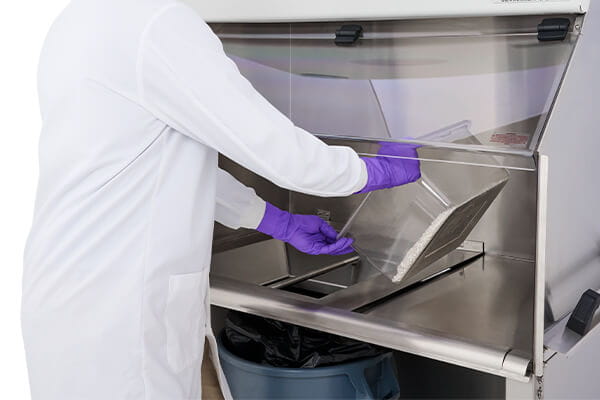

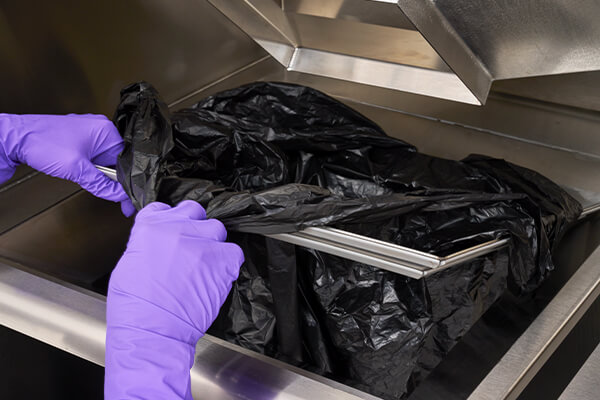

The NU-608 combines NuAire’s expertise in containment with its understanding of animal handing work to provide a cage dumping station that is safe, mobile, ergonomic, and durable enough for the vivarium. The EC impeller creates a powerful 105 FPM (0,53 m/s) inflow to protect the user as they easily reach through the 14” (356mm) work access opening to dump refuse into a rectangular waste chute built into the stainless steel work surface. This work surface is easily raised for efficient replacement of the waste bag underneath. The work zone is surrounded by cleanable and durable stainless-steel side walls and set on a telescoping base with castors that allows both easy movement and height adjustment to fit every technician. LED lights provide long lasting and efficient illumination in the work zone, and users can easily monitor cabinet performance through the Aeromax™ control system that visualizes pressure in the cabinet’s internal airflow plenum. A visual and audible alarm activates when parameters are unsafe.

Specifications

Animal Bedding Refuse Workstation
Construction Stainless steel work zone panels and base with painted steel top blower module.
Exhaust Filter 6-inch (152mm) 99.99% Efficiency @ 0.3 Micron
HEPA Filter Seal Type Neoprene, Spring loaded
Lighting LED
Style Console with integral base
Viewing Window Inches (mm) 28 (711)
Work Access Opening(s) 14 (356)
Est. Shipping Depth Inches (mm) 37 (940)
Est. Shipping Height Inches (mm) 63 (1600)
Est. Shipping Width Inches (mm) 53 (1346)
Exterior Depth Inches (mm) 32 7/8 (833)
Exterior Height (Fully Assembled, maximum) Inches (mm) 84 1/4 (2140)
Exterior Height (Fully Assembled, minimum) Inches (mm) 92 1/4 (2342)
Exterior Width Inches (mm) 52 5/8 (1337)
Nominal Width Feet (Meters) 4 ft. (1.2m)
Work Area Depth Inches (mm) 29 3/4 (756)
Work Area Height Inches (mm) 28 1/8 (715)
Work Area Width Inches (mm) 46 3/8 (1178)
Blower Amps 2.4
Electrical Configuration 115V60Hz, 230V5060Hz
Light Amps 0.2
Power Cord Length Foot (Meter) 10 (3)
Rated Amps 5
Light Intensity fc (Lux) 50 - 150 (538 - 1600)
Exhaust Requirement CFM (CMH) 511 (868)
Safety Certification UL, UL-C
Fumigation: per NIH/NSF Procedures True
Heat Rejected (BTU/Hour) 1020
Inflow fpm (m/s) 105 (0.53)
Protection Personnel
Control System AeroMax
Est. Shipping Weight lbs (kg) 450 (204)
Net Weight lbs (kg) 400 (181)
Construction Stainless steel work zone panels and base with painted steel top blower module.
Exhaust Filter 6-inch (152mm) 99.99% Efficiency @ 0.3 Micron
HEPA Filter Seal Type Neoprene, Spring loaded
Lighting LED
Style Console with integral base
Viewing Window Inches (mm) 28 (711)
Work Access Opening(s) 14 (356)
Est. Shipping Depth Inches (mm) 37 (940)
Est. Shipping Height Inches (mm) 63 (1600)
Est. Shipping Width Inches (mm) 53 (1346)
Exterior Depth Inches (mm) 32 7/8 (833)
Exterior Height (Fully Assembled, maximum) Inches (mm) 84 1/4 (2140)
Exterior Height (Fully Assembled, minimum) Inches (mm) 92 1/4 (2342)
Exterior Width Inches (mm) 52 5/8 (1337)
Nominal Width Feet (Meters) 4 ft. (1.2m)
Work Area Depth Inches (mm) 29 3/4 (756)
Work Area Height Inches (mm) 28 1/8 (715)
Work Area Width Inches (mm) 46 3/8 (1178)
Blower Amps 1.2
Electrical Configuration 115V60Hz, 230V5060Hz
Light Amps 0.1
Power Cord Length Foot (Meter) 10 (3)
Rated Amps 5
Light Intensity fc (Lux) 50 - 150 (538 - 1600)
Exhaust Requirement CFM (CMH) 511 (868)
Safety Certification UL, UL-C
Fumigation: per NIH/NSF Procedures True
Heat Rejected (BTU/Hour) 1020
Inflow fpm (m/s) 105 (0.53)
Protection Personnel
Control System AeroMax
Est. Shipping Weight lbs (kg) 450 (204)
Net Weight lbs (kg) 400 (181)
