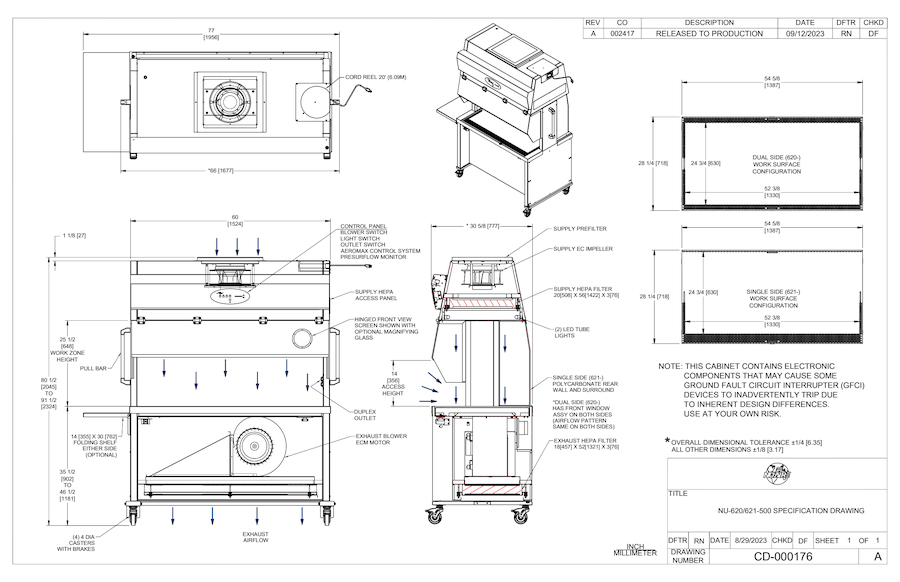

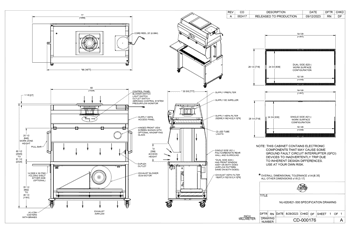

NU-620-500 and NU-621-500 Animal Transfer Station Technical Drawing

Discover an indispensable resource for your vivarium with our technical product drawing for the NU-620-500 and NU-621-500 Animal Transfer Stations (ATS). Engineered with a nominal width of 5 feet (1.5 meters) and operating on a 115-volt system, this comprehensive document outlines critical dimensions, standard features, and customizable options to maximize cage changing workflow in the vivarium. The drawing showcases the state-of-the-art design that aids in small animal cage changing while providing safeguards to maintain animal sterility. Whether you're involved in purchasing or actively working on vivarium design, this detailed document enables precise space planning and electrical provisioning to ensure seamless integration into your existing setup. With keen attention to ergonomics and functionality, our ATS units are crafted to promote efficiency and sterility, making this technical drawing a must-have tool for your next project.
