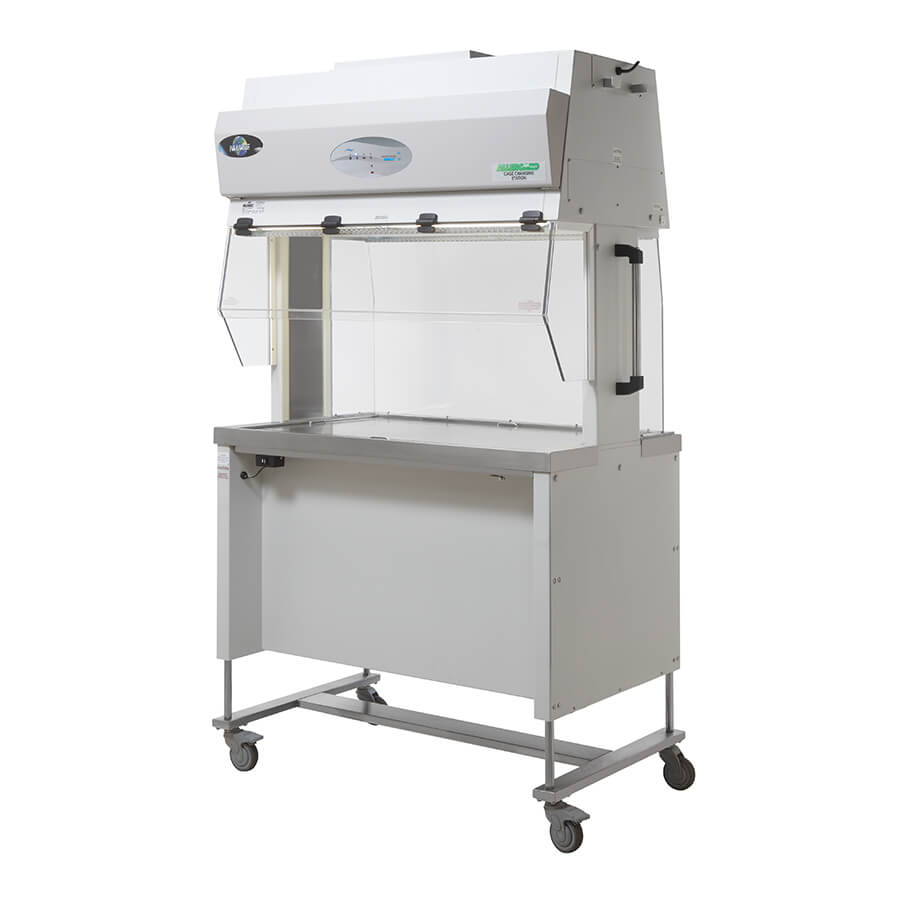

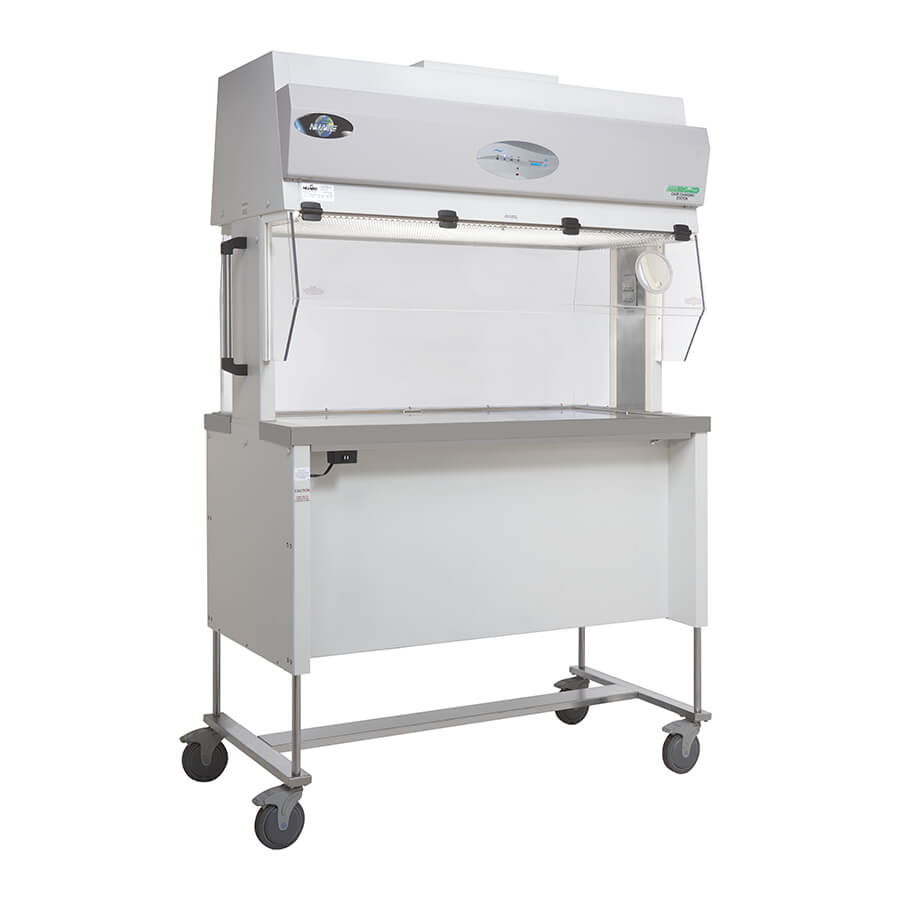

AllerGard ES NU-621 Single-SidedAnimal Transfer Station
- Overview
- Specifications
- Resources
Overview
The AllerGard NU-621 Single-Sided Animal Transfer Station is engineered for unparalleled safety and efficiency in vivarium settings, featuring a robust air barrier and HEPA-filtered airflow designed to protect both animals and technicians. A dynamic air barrier of 75 fpm at the front and a laminar downflow of 60 fpm ensure a clean, controlled environment for sensitive cage-changing procedures. Available in three sizes, the NU-621 accommodates various laboratory spaces and workflows. Its motorized base adjusts to different user heights, promoting ergonomic operation. Ideal for veterinary and vivarium managers seeking to enhance cage change protocols while significantly reducing allergen exposure, the NU-621 stands out as a superior choice for maintaining high animal care and operator safety standards.

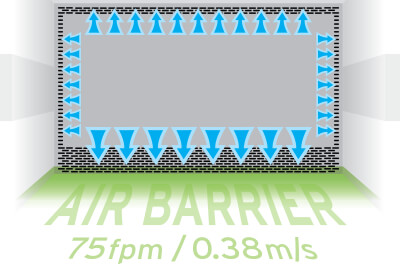

Enhanced Safety with Stronger Air Barrier
The AllerGard NU-621 Single-Sided Animal Transfer Station stands at the forefront of vivarium safety, offering technicians unparalleled protection during crucial cage-changing procedures. Its sophisticated airflow mechanism, boasting a 75 fpm (0.38 m/s) inflow, establishes a strong air barrier for improved allergen protection. This design adeptly reduces the potential for allergens to enter the lab environment, especially during movements that disrupt the air. By creating a more substantial vacuum effect, the NU-621 efficiently minimizes allergen spread, providing a safer workspace while maintaining the integrity of sensitive animals. This station represents ergonomic innovation at its best, prioritizing the health and safety of both staff and research animals.

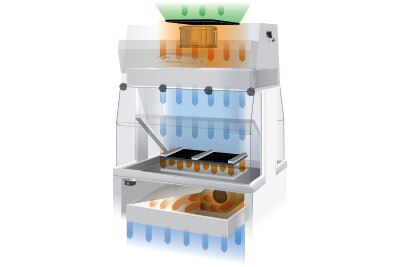

Ensuring Animal Sterility with Clean Airflow
Discover the benefits of advanced laminar airflow technology designed to protect the sterility of laboratory animals, ensuring a contamination-free workspace. This single-sided animal transfer station is vital in minimizing cross-contamination risks, offering a clean air environment crucial for maintaining the integrity of research animals. Tailored for vivariums prioritizing animal welfare, it epitomizes efficiency and safety, making it indispensable for sustaining optimal clean air conditions.

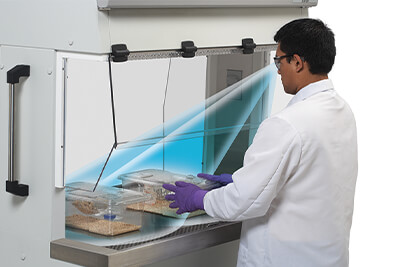

Optimal Comfort for Lab Animals
Designed with the well-being of laboratory animals in mind, the AllerGard NU-621 ATS creates an ergonomic environment that significantly reduces stress for mice and rats. Equipped with cool white lighting, it offers a calm atmosphere, and the option to add red light caters to the specific needs of your laboratory animals, further minimizing anxiety. Moreover, its low vibration and noise design ensures a tranquil environment, promoting the health and comfort of animals during cage transfers. This focus on creating a stress-free setting benefits the animals and enhances the reliability of research outcomes by maintaining the natural behavior of specimens.

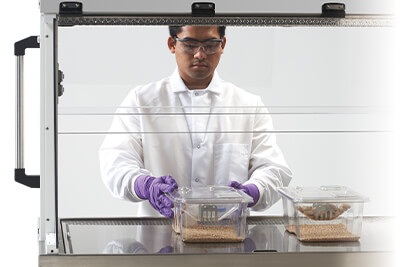

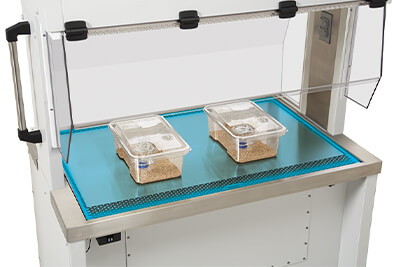

Customize Workflow with Flexible Workspace Setup
Adapt and optimize your laboratory's workflow with a workspace that can be fully configured to meet your specific needs. This single-sided station offers unmatched flexibility, allowing you to arrange and accessorize based on your daily operations. Every feature is designed with efficiency in mind, from easily movable casters and ergonomic push/pull bars to an adjustable base stand that caters to all technician heights. Additional options like a magnifying glass for detailed work, side shelves for organized storage, and mounted hand sanitizer promote a seamless, clean environment. Customize your setup to streamline procedures, enhance accuracy, and support animal welfare effortlessly.
Streamline Cleaning, Extend Filter Life
Elevate lab cleanliness with a design focused on easy maintenance and longevity. The innovative prop-up work tray allows for thorough cleaning under the work surface. Coupled with a sophisticated pre-filtration system, it effectively traps larger particles such as bedding and hair, extending the life of both Supply and Exhaust HEPA filters. These features ensure a consistently clean environment, which is vital for research accuracy and laboratory animals' well-being while optimizing operational efficiency and reducing maintenance costs over time.
Specifications
| Casters | 4 (102), Lockable |
| Construction | Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen |
| Diffuser | Metal |
| Exhaust Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Exhaust Prefilter | Below Work Surface |
| HEPA Filter Seal Type | Neoprene, Spring-loaded |
| Lighting | LED |
| Motor(s) | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower |
| Plenum Type | Inquire |
| Style | Console |
| Supply Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Supply Prefilter | Top of Unit |
| Viewing Window Inches (mm) | Hinged |
| Work Access Opening(s) | 14 (356) |
| Work Surface | Stainless Steel |
| Est. Shipping Depth Inches (mm) | 38 (965) |
| Est. Shipping Height Inches (mm) | 75 (1905) |
| Est. Shipping Width Inches (mm) | 52 (1321) |
| Exterior Depth Inches (mm) | 30 5/8 (778) |
| Exterior Height (Fully Assembled, maximum) Inches (mm) | 92 1/2 (2350) |
| Exterior Height (Fully Assembled, minimum) Inches (mm) | 80 1/2 (2045) |
| Exterior Height (Minimum for Transport) Inches (mm) | 75 (1905) without castors |
| Exterior Height Inches (mm) | 80 1/2 (2045) - 92 1/2 (2350) |
| Exterior Width Inches (mm) | 42 (1067) without sidebars |
| Footprint Depth inches (mm) | 30 5/8 (777) |
| Footprint Width inches (mm) | 48 (1220) with sidebars |
| Useable Work Tray Area Depth Inches (mm) | 24 3/4 (630) |
| Useable Work Tray Area Width Inches (mm) | 34 3/8 (873) |
| Work Area Depth Inches (mm) | 28 1/4 (718) |
| Work Area Height Inches (mm) | 25 1/2 (648) |
| Work Area Width Inches (mm) | 36 5/8 (929) |
| Blower/Lights Amps | 5 |
| Electrical Configuration | 115V60Hz, 230V5060Hz |
| Outlet Amps | 3 |
| Power Cord | 15A |
| Power Cord Length Foot (Meter) | 20 ft. (6.1 m) Cord Reel |
| Rated Amps | 12 |
| Light Intensity fc (Lux) | Inquire |
| Sound Pressure Level per ISO 4871 | Inquire |
| Safety Certification | UL, UL-C |
| Free Standing Cage Top Holder | Accessory |
| Hand Sanitizer Dispenser | Accessory |
| Air Cleanliness (ISO 14644) | ISO-Class-5 |
| Downflow fpm (m/s) | 60 (0.30) |
| Fumigation: per NIH/NSF Procedures | Yes |
| Heat Rejected (BTU/Hour) | 785 |
| Inflow fpm (m/s) | 75 (0.38) |
| Protection | Product |
| Control System | AeroMax |
| Est. Shipping Weight lbs (kg) | 480 (218) |
| Net Weight lbs (kg) | 430 (195) |
| Casters | 4 (102), Lockable |
| Construction | Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen |
| Diffuser | Metal |
| Exhaust Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Exhaust Prefilter | Below Work Surface |
| HEPA Filter Seal Type | Neoprene, Spring-loaded |
| Lighting | LED |
| Motor(s) | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower |
| Plenum Type | Inquire |
| Style | Console |
| Supply Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Supply Prefilter | Top of Unit |
| Viewing Window Inches (mm) | Hinged |
| Work Access Opening(s) | 14 (356) |
| Work Surface | Stainless Steel |
| Est. Shipping Depth Inches (mm) | 38 (965) |
| Est. Shipping Height Inches (mm) | 75 (1905) |
| Est. Shipping Width Inches (mm) | 52 (1321) |
| Exterior Depth Inches (mm) | 30 5/8 (778) |
| Exterior Height (Fully Assembled, maximum) Inches (mm) | 92 1/2 (2350) |
| Exterior Height (Fully Assembled, minimum) Inches (mm) | 80 1/2 (2045) |
| Exterior Height (Minimum for Transport) Inches (mm) | 75 (1905) without castors |
| Exterior Height Inches (mm) | 80 1/2 (2045) - 92 1/2 (2350) |
| Exterior Width Inches (mm) | 42 (1067) without sidebars |
| Footprint Depth inches (mm) | 30 5/8 (777) |
| Footprint Width inches (mm) | 48 (1220) with sidebars |
| Useable Work Tray Area Depth Inches (mm) | 24 3/4 (630) |
| Useable Work Tray Area Width Inches (mm) | 34 3/8 (873) |
| Work Area Depth Inches (mm) | 28 1/4 (718) |
| Work Area Height Inches (mm) | 25 1/2 (648) |
| Work Area Width Inches (mm) | 36 5/8 (929) |
| Blower/Lights Amps | 3 |
| Electrical Configuration | 115V60Hz, 230V5060Hz |
| Outlet Amps | 3 |
| Power Cord | 15A |
| Power Cord Length Foot (Meter) | 20 ft. (6.1 m) Cord Reel |
| Rated Amps | 8 |
| Light Intensity fc (Lux) | Inquire |
| Sound Pressure Level per ISO 4871 | Inquire |
| Safety Certification | UL, UL-C |
| Free Standing Cage Top Holder | Accessory |
| Hand Sanitizer Dispenser | Accessory |
| Air Cleanliness (ISO 14644) | ISO-Class-5 |
| Downflow fpm (m/s) | 60 (0.30) |
| Fumigation: per NIH/NSF Procedures | Yes |
| Heat Rejected (BTU/Hour) | 785 |
| Inflow fpm (m/s) | 75 (0.38) |
| Protection | Product |
| Control System | AeroMax |
| Est. Shipping Weight lbs (kg) | 480 (218) |
| Net Weight lbs (kg) | 430 (195) |
| Casters | 4 (102), Lockable |
| Construction | Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen |
| Diffuser | Metal |
| Exhaust Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Exhaust Prefilter | Below Work Surface |
| HEPA Filter Seal Type | Neoprene, Spring-loaded |
| Lighting | LED |
| Motor(s) | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower |
| Plenum Type | Inquire |
| Style | Console |
| Supply Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Supply Prefilter | Top of Unit |
| Viewing Window Inches (mm) | Hinged |
| Work Access Opening(s) | 14 (356) |
| Work Surface | Stainless Steel |
| Est. Shipping Depth Inches (mm) | 43 (1092) |
| Est. Shipping Height Inches (mm) | 75 (1905) |
| Est. Shipping Width Inches (mm) | 58 (1473) |
| Exterior Depth Inches (mm) | 30 5/8 (777) |
| Exterior Height (Fully Assembled, maximum) Inches (mm) | 92 1/2 (2350) |
| Exterior Height (Fully Assembled, minimum) Inches (mm) | 80 1/2 (2045) |
| Exterior Height (Minimum for Transport) Inches (mm) | 75 (1905) without castors |
| Exterior Height Inches (mm) | 80 1/2 (2045) - 92 1/2 (2350) |
| Exterior Width Inches (mm) | 48 (1219) without sidebars |
| Footprint Depth inches (mm) | 30 5/8 (777) |
| Footprint Width inches (mm) | 54 (1372) with sidebars |
| Useable Work Tray Area Depth Inches (mm) | 24 3/4 (630) |
| Useable Work Tray Area Width Inches (mm) | 40 3/8 (1025) |
| Work Area Depth Inches (mm) | 28 1/4 (718) |
| Work Area Height Inches (mm) | 25 1/2 (648) |
| Work Area Width Inches (mm) | 42 5/8 (1081) |
| Blower/Lights Amps | 5.5 |
| Electrical Configuration | 115V60Hz, 230V5060Hz |
| Outlet Amps | 3 |
| Power Cord | 15A |
| Power Cord Length Foot (Meter) | 20 ft. (6.1 m) Cord Reel |
| Rated Amps | 12 |
| Light Intensity fc (Lux) | Inquire |
| Sound Pressure Level per ISO 4871 | Inquire |
| Safety Certification | UL, UL-C |
| Free Standing Cage Top Holder | Accessory |
| Hand Sanitizer Dispenser | Accessory |
| Air Cleanliness (ISO 14644) | ISO-Class-5 |
| Downflow fpm (m/s) | 60 (0.30) |
| Fumigation: per NIH/NSF Procedures | Yes |
| Heat Rejected (BTU/Hour) | 785 |
| Inflow fpm (m/s) | 75 (0.38) |
| Protection | Product |
| Control System | AeroMax |
| Est. Shipping Weight lbs (kg) | 510 (231) |
| Net Weight lbs (kg) | 460 (209) |
| Casters | 4 (102), Lockable |
| Construction | Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen |
| Diffuser | Metal |
| Exhaust Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Exhaust Prefilter | Below Work Surface |
| HEPA Filter Seal Type | Neoprene, Spring-loaded |
| Lighting | LED |
| Motor(s) | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower |
| Plenum Type | Inquire |
| Style | Console |
| Supply Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Supply Prefilter | Top of Unit |
| Viewing Window Inches (mm) | Hinged |
| Work Access Opening(s) | 14 (356) |
| Work Surface | Stainless Steel |
| Est. Shipping Depth Inches (mm) | 43 (1092) |
| Est. Shipping Height Inches (mm) | 75 (1905) |
| Est. Shipping Width Inches (mm) | 58 (1473) |
| Exterior Depth Inches (mm) | 30 5/8 (777) |
| Exterior Height (Fully Assembled, maximum) Inches (mm) | 92 1/2 (2350) |
| Exterior Height (Fully Assembled, minimum) Inches (mm) | 80 1/2 (2045) |
| Exterior Height (Minimum for Transport) Inches (mm) | 75 (1905) without castors |
| Exterior Height Inches (mm) | 80 1/2 (2045) - 92 1/2 (2350) |
| Exterior Width Inches (mm) | 48 (1219) without sidebars |
| Footprint Depth inches (mm) | 30 5/8 (777) |
| Footprint Width inches (mm) | 54 (1372) with sidebars |
| Useable Work Tray Area Depth Inches (mm) | 24 3/4 (630) |
| Useable Work Tray Area Width Inches (mm) | 40 3/8 (1025) |
| Work Area Depth Inches (mm) | 28 1/4 (718) |
| Work Area Height Inches (mm) | 25 1/2 (648) |
| Work Area Width Inches (mm) | 42 5/8 (1081) |
| Blower/Lights Amps | 3.5 |
| Electrical Configuration | 115V60Hz, 230V5060Hz |
| Outlet Amps | 3 |
| Power Cord | 15A |
| Power Cord Length Foot (Meter) | 20 ft. (6.1 m) Cord Reel |
| Rated Amps | 8 |
| Light Intensity fc (Lux) | Inquire |
| Sound Pressure Level per ISO 4871 | Inquire |
| Safety Certification | UL, UL-C |
| Free Standing Cage Top Holder | Accessory |
| Hand Sanitizer Dispenser | Accessory |
| Air Cleanliness (ISO 14644) | ISO-Class-5 |
| Downflow fpm (m/s) | 60 (0.30) |
| Fumigation: per NIH/NSF Procedures | Yes |
| Heat Rejected (BTU/Hour) | 785 |
| Inflow fpm (m/s) | 75 (0.38) |
| Protection | Product |
| Control System | AeroMax |
| Est. Shipping Weight lbs (kg) | 510 (231) |
| Net Weight lbs (kg) | 460 (209) |
| Casters | 4 (102), Lockable |
| Construction | Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen |
| Diffuser | Metal |
| Exhaust Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Exhaust Prefilter | Below Work Surface |
| HEPA Filter Seal Type | Neoprene, Spring-loaded |
| Lighting | LED |
| Motor(s) | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower |
| Plenum Type | Inquire |
| Style | Console |
| Supply Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Supply Prefilter | Top of Unit |
| Viewing Window Inches (mm) | Hinged |
| Work Access Opening(s) | 14 (356) |
| Work Surface | Stainless Steel |
| Est. Shipping Depth Inches (mm) | 43 (1092) |
| Est. Shipping Height Inches (mm) | 75 (1905) |
| Est. Shipping Width Inches (mm) | 72 (1829) |
| Exterior Depth Inches (mm) | 30 5/8 (777) |
| Exterior Height (Fully Assembled, maximum) Inches (mm) | 92 1/2 (2350) |
| Exterior Height (Fully Assembled, minimum) Inches (mm) | 80 1/2 (2045) |
| Exterior Height (Minimum for Transport) Inches (mm) | 75 (1905) without castors |
| Exterior Height Inches (mm) | 80 1/2 (2045) - 92 1/2 (2350) |
| Exterior Width Inches (mm) | 60 (1524) without sidebars |
| Footprint Depth inches (mm) | 30 5/8 (777) |
| Footprint Width inches (mm) | 66 (1677) with sidebars |
| Useable Work Tray Area Depth Inches (mm) | 24 3/4 (630) |
| Useable Work Tray Area Width Inches (mm) | 52 3/8 (1330) |
| Work Area Depth Inches (mm) | 28 1/4 (718) |
| Work Area Height Inches (mm) | 25 1/2 (648) |
| Work Area Width Inches (mm) | 54 5/8 (1387) |
| Blower/Lights Amps | 6 |
| Electrical Configuration | 115V60Hz, 230V5060Hz |
| Outlet Amps | 3 |
| Power Cord | 15A |
| Power Cord Length Foot (Meter) | 20 ft. (6.1 m) Cord Reel |
| Rated Amps | 12 |
| Light Intensity fc (Lux) | Inquire |
| Sound Pressure Level per ISO 4871 | N/A |
| Safety Certification | UL, UL-C |
| Free Standing Cage Top Holder | Accessory |
| Hand Sanitizer Dispenser | Accessory |
| Air Cleanliness (ISO 14644) | ISO-Class-5 |
| Downflow fpm (m/s) | 60 (0.30) |
| Fumigation: per NIH/NSF Procedures | Yes |
| Heat Rejected (BTU/Hour) | 785 |
| Inflow fpm (m/s) | 75 (0.38) |
| Protection | Product |
| Control System | AeroMax |
| Est. Shipping Weight lbs (kg) | 580 (263) |
| Net Weight lbs (kg) | 530 (240) |
| Casters | 4 (102), Lockable |
| Construction | Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen |
| Diffuser | Metal |
| Exhaust Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Exhaust Prefilter | Below Work Surface |
| HEPA Filter Seal Type | Neoprene, Spring-loaded |
| Lighting | LED |
| Motor(s) | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower |
| Plenum Type | Inquire |
| Style | Console |
| Supply Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Supply Prefilter | Top of Unit |
| Viewing Window Inches (mm) | Hinged |
| Work Access Opening(s) | 14 (356) |
| Work Surface | Stainless Steel |
| Est. Shipping Depth Inches (mm) | 43 (1092) |
| Est. Shipping Height Inches (mm) | 75 (1905) |
| Est. Shipping Width Inches (mm) | 72 (1829) |
| Exterior Depth Inches (mm) | 30 5/8 (777) |
| Exterior Height (Fully Assembled, maximum) Inches (mm) | 92 1/2 (2350) |
| Exterior Height (Fully Assembled, minimum) Inches (mm) | 80 1/2 (2045) |
| Exterior Height (Minimum for Transport) Inches (mm) | 75 (1905) without castors |
| Exterior Height Inches (mm) | 80 1/2 (2045) - 92 1/2 (2350) |
| Exterior Width Inches (mm) | 60 (1524) without sidebars |
| Footprint Depth inches (mm) | 30 5/8 (777) |
| Footprint Width inches (mm) | 66 (1677) with sidebars |
| Useable Work Tray Area Depth Inches (mm) | 24 3/4 (630) |
| Useable Work Tray Area Width Inches (mm) | 52 3/8 (1330) |
| Work Area Depth Inches (mm) | 28 1/4 (718) |
| Work Area Height Inches (mm) | 25 1/2 (648) |
| Work Area Width Inches (mm) | 54 5/8 (1387) |
| Blower/Lights Amps | 4 |
| Electrical Configuration | 115V60Hz, 230V5060Hz |
| Outlet Amps | 3 |
| Power Cord | 15A |
| Power Cord Length Foot (Meter) | 20 ft. (6.1 m) Cord Reel |
| Rated Amps | 8 |
| Light Intensity fc (Lux) | Inquire |
| Sound Pressure Level per ISO 4871 | Inquire |
| Safety Certification | UL, UL-C |
| Free Standing Cage Top Holder | Accessory |
| Hand Sanitizer Dispenser | Accessory |
| Air Cleanliness (ISO 14644) | ISO-Class-5 |
| Downflow fpm (m/s) | 60 (0.30) |
| Fumigation: per NIH/NSF Procedures | Yes |
| Heat Rejected (BTU/Hour) | 785 |
| Inflow fpm (m/s) | 75 (0.38) |
| Protection | Product |
| Control System | AeroMax |
| Est. Shipping Weight lbs (kg) | 580 (263) |
| Net Weight lbs (kg) | 530 (240) |
Resources
Brochures
Drawings
-
NU-620-300 and NU-621-300 Animal Transfer Station Technical Drawing
-
NU-620-300E and NU-621-300E Animal Transfer Station Technical Drawing
-
NU-620-400E and NU-621-400E Animal Transfer Station Technical Drawing
-
NU-620-500E and NU-621-500E Animal Transfer Station Technical Drawing
-
NU-620-400 and NU-621-400 Animal Transfer Station Technical Drawing
-
NU-620-500 and NU-621-500 Animal Transfer Station Technical Drawing
