Overview

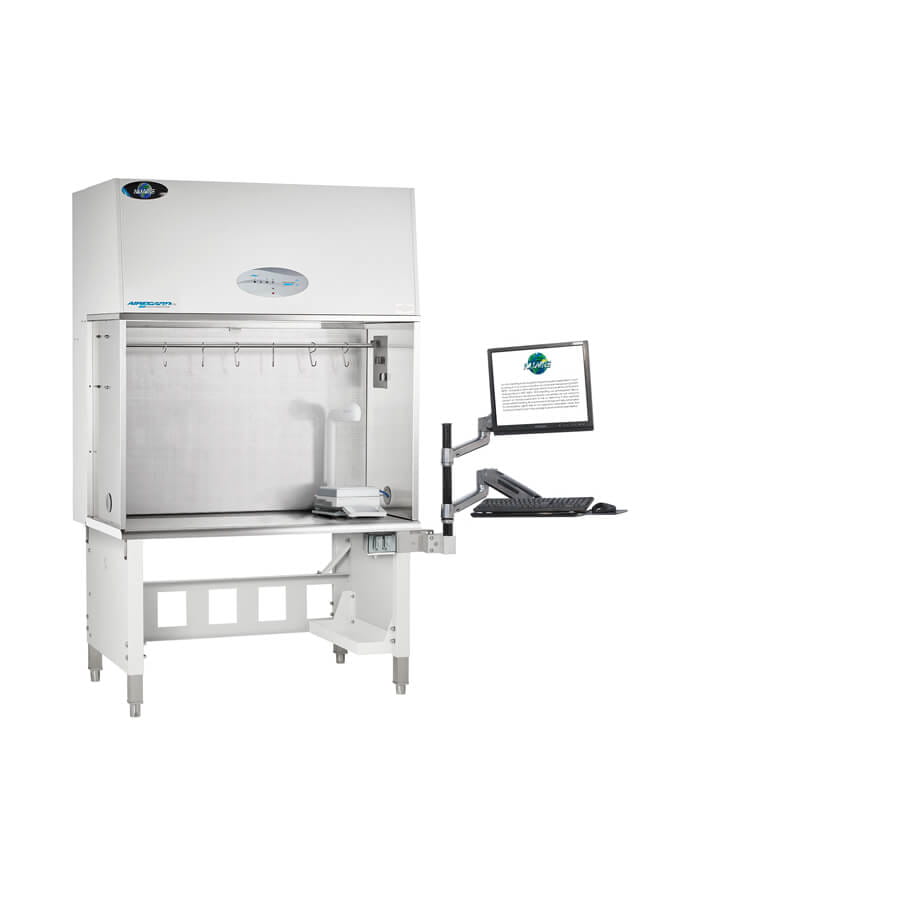

Elevate your workspace with the AireGard™ NU-240, a cutting-edge benchtop model designed for unparalleled adaptability. Whether you choose to install it directly on a bench or opt for an additional base stand, this model fits seamlessly into your laboratory or pharmacy setup.

Delivering ISO Class 5 HEPA-filtered horizontal laminar airflow, the NU-240 offers unmatched product protection, making it an invaluable asset for sterile non-hazardous drug compounding for USP 797 compliance or cell culture research requiring product protection.

Powered by an advanced ultra-high efficiency motor, it channels air through a top pre-filter and then through a back wall HEPA filter, ensuring ISO Class 5 air purity. Enclosed within robust stainless-steel walls and a durable stainless steel work surface with a PVC core, this model epitomizes both functionality and durability.

The intuitive Aeromax™ control system keeps you in command, allowing you to effortlessly monitor workbench performance by visualizing the pressure within the internal airflow plenum.

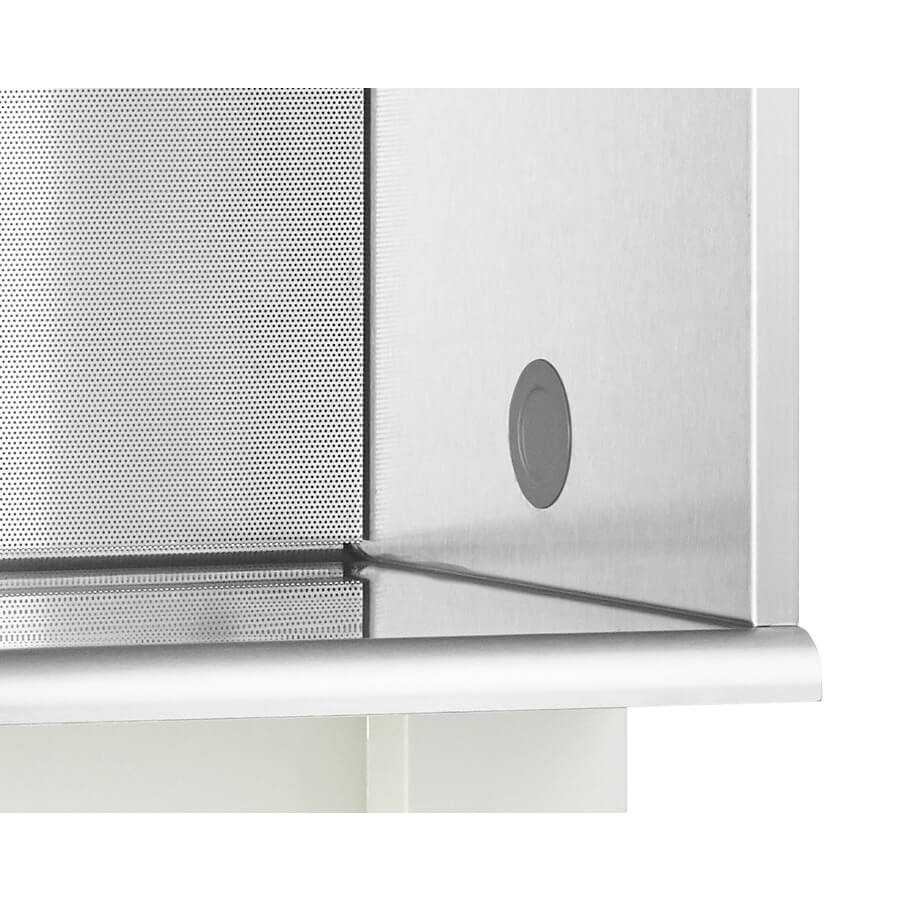

Beyond its core features, the NU-240 is equipped with convenient cord pass-throughs and bright LED lighting. Further customization options include polycarbonate walls, an IV bar, outlets, and service valves, ensuring that the NU-240 can be tailored to your unique workflow demands.

Invest in flexibility, quality, and precision with the AireGard™ NU-240 benchtop model.

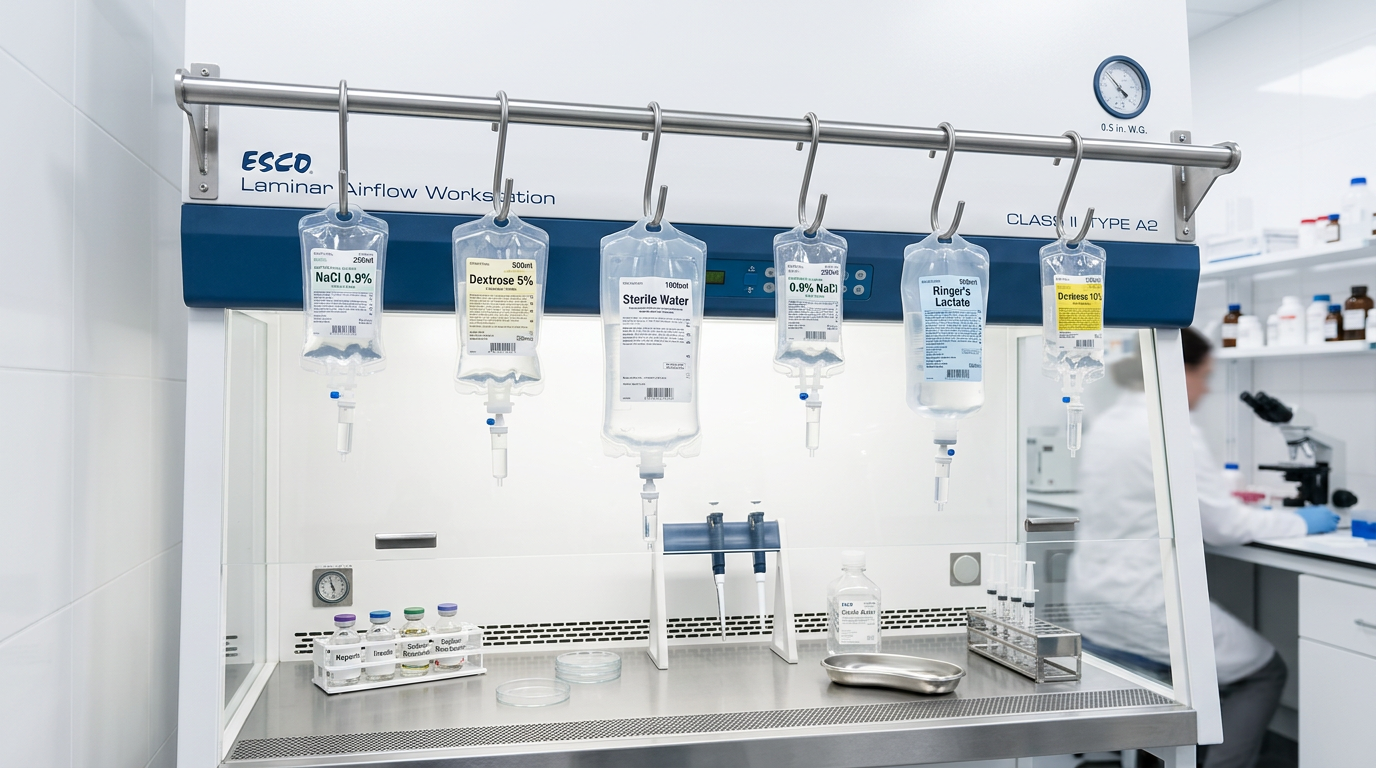

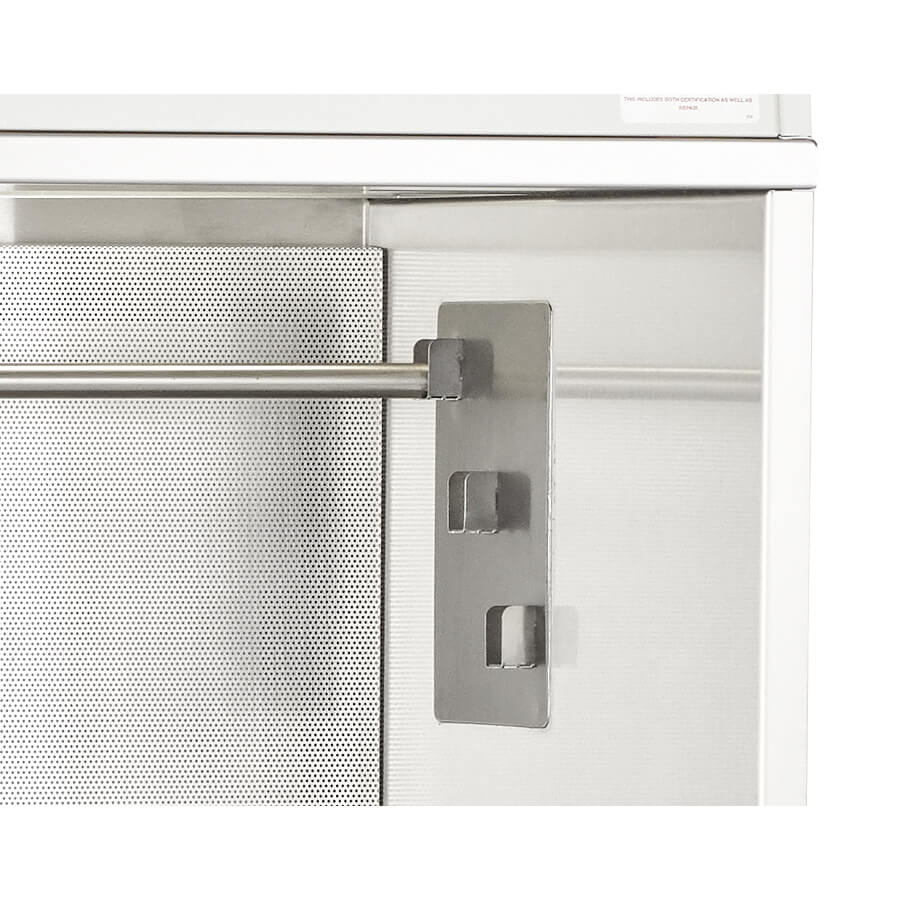

IV Bar with 6 Hooks

Optimize your sterile non-hazardous drug compounding preparations with our IV bar option. Boasting 6 hooks and three adjustable height settings, this addition transforms the workstation into an adaptable primary engineering control (PEC) tailored for pharmacy environments. Crafted from stainless steel, it ensures easy cleanability while offering versatility in height placements. Experience unparalleled flexibility and cleanability in one.

AireGard Horizontal Laminar Airflow Workstations come optional with an IV bar with 6 hooks and 3 height locations for applications such as IV admixture.

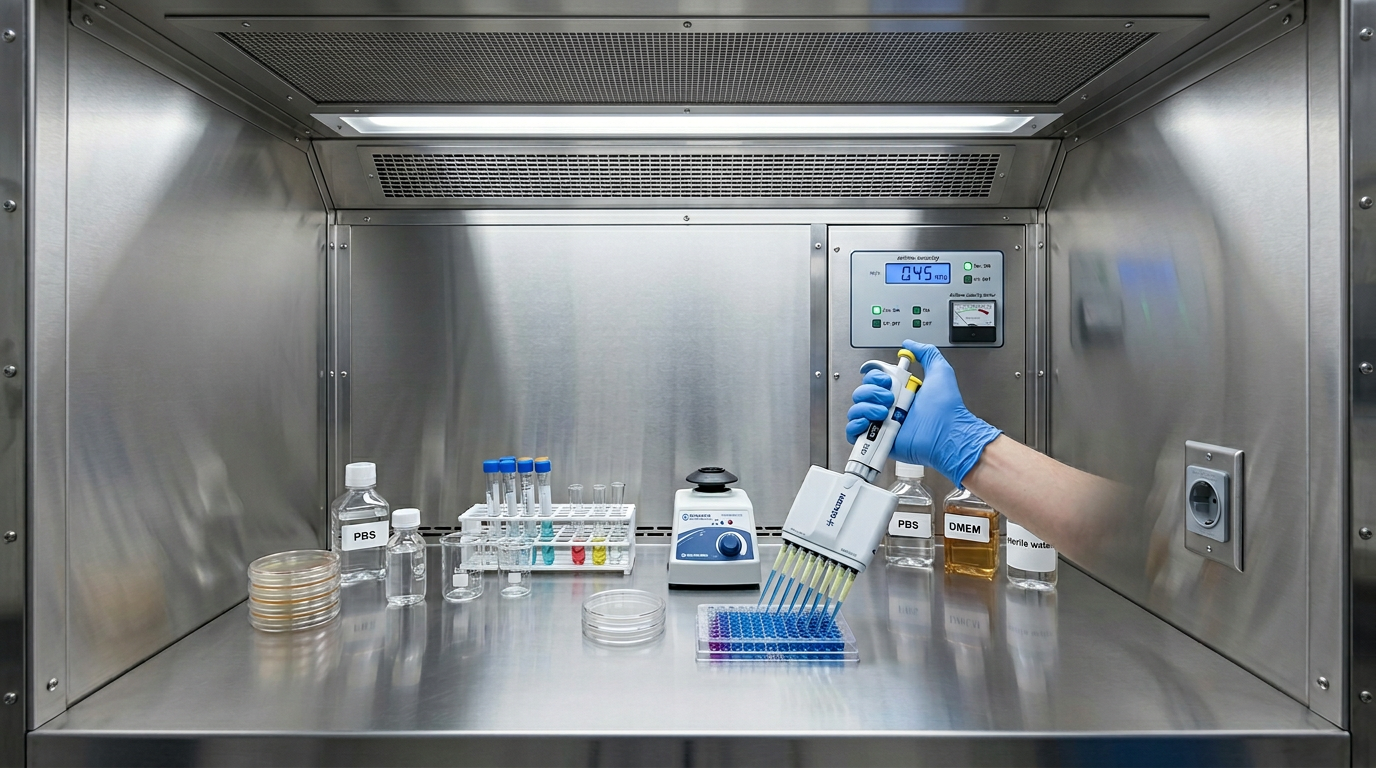

Stainless Steel Workzone

Featuring durable stainless steel walls and a work surface fortified with a PVC core, our work zone is designed for cleanability. With the inclusion of two versatile cord-pass throughs, manage your power cords seamlessly, be it for TPN compounding machines or vortex mixers. This meticulous design makes it the premier choice as a primary engineering control for sterile non-hazardous compounding in pharmacies or as a pristine air workbench for microbiology labs.

The AireGard NU-240 Horizontal Laminar Airflow Workstation comes standard with a smooth work zone constructed of stainless steel for enhanced cleanability.

AeroMax Control System

Experience ease of use like never before with our Aeromax control system. Designed for simplicity, it uses intuitive multicolored lights to display airflow performance. Plus, should workbench performance deviate from the norm, both visual and audible alarms ensure clarity and quick understanding. Simplify your operations with user-friendly electronic controls.

AeroMax Electronic Control System for Lab Equipment

Ultra High Efficiency Motor

Experience significant energy savings with our ultra-high efficiency DC ECM motor. Not only does it operate with reduced noise, but its optimal power also prolongs HEPA filter life. This means considerable long-term savings, reducing the total cost of ownership for your pharmacy or laboratory. Dive into a future of eco-friendly efficiency and lasting savings.

Ultra high efficiency motor for lab equipment

Specifications

AireGard NU-240 Bench Top Horizontal Laminar Flow Hood
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/3 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Access Opening(s) 32 (813)
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 66 (1676)
Est. Shipping Width Inches (mm) 44 (1118)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 38 (965)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 38 (962)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813)
Work Area Width Inches (mm) 35 7/8 (911)
Blower/Lights Amps 2.2
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 7
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 718 (1220)
Heat Rejected (BTU/Hour) 863
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 330 (150)
Net Weight lbs (kg) 290 (132)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/3 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Access Opening(s) 32 (813)
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 66 (1676)
Est. Shipping Width Inches (mm) 44 (1118)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 38 (965)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 38 (962)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813)
Work Area Width Inches (mm) 35 7/8 (911)
Blower/Lights Amps 2.2
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 5
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 718 (1220)
Heat Rejected (BTU/Hour) 863
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 330 (150)
Net Weight lbs (kg) 290 (132)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/3 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Access Opening(s) 38 (965)
Est. Shipping Depth Inches (mm) 42 (1067)
Est. Shipping Height Inches (mm) 65 (1651)
Est. Shipping Width Inches (mm) 42 (1067)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 61 3/8 (1559)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 87 7/8 (2232) with 27 7/8-inch (709mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 95 7/8 (2435) with 35 7/8-inch (912mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 38 (965)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 38 (962)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 38 (965)
Work Area Width Inches (mm) 35 7/8 (911)
Blower/Lights Amps 2.8
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 7
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 852 (1448)
Heat Rejected (BTU/Hour) 1099
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 345 (156)
Net Weight lbs (kg) 305 (138)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/2 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core
Work Access Opening(s) 32 (813)
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 64 (1626)
Est. Shipping Width Inches (mm) 58 (1473)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 50 (1270)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 50 (1270)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813)
Work Area Width Inches (mm) 47 7/8 (1216)
Blower/Lights Amps 3.2
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 8
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 1137 (1932)
Heat Rejected (BTU/Hour) 1491
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 390 (177)
Net Weight lbs (kg) 340 (154)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/2 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core
Work Access Opening(s) 32 (813)
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 64 (1626)
Est. Shipping Width Inches (mm) 58 (1473)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 50 (1270)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 50 (1270)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813)
Work Area Width Inches (mm) 47 7/8 (1216)
Blower/Lights Amps 3.2
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 6
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 958 (1628)
Heat Rejected (BTU/Hour) 1256
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 390 (177)
Net Weight lbs (kg) 340 (154)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/2 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core
Work Access Opening(s) 38 (965)
Est. Shipping Depth Inches (mm)
Est. Shipping Height Inches (mm)
Est. Shipping Width Inches (mm)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 61 3/8 (1559)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 87 7/8 (2232) with 27 7/8-inch (709mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 95 7/8 (2435) with 35 7/8-inch (912mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 50 (1270)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 50 (1270)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 38 (965)
Work Area Width Inches (mm) 47 7/8 (1216)
Blower/Lights Amps 3.8
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 8
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 1137 (1932)
Heat Rejected (BTU/Hour) 1491
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 405 (184)
Net Weight lbs (kg) 355 (161)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/2 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core
Work Access Opening(s) 38 (965)
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 68 (1727)
Est. Shipping Width Inches (mm) 70 (1778)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 62 (1575)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 62 (1575)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813)
Work Area Width Inches (mm) 59 7/8 (1521)
Blower/Lights Amps 4.2
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 8
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 1198 (2036)
Heat Rejected (BTU/Hour) 1648
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 450 (204)
Net Weight lbs (kg) 400 (181)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/2 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core
Work Access Opening(s) 32 (813)
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 68 (1727)
Est. Shipping Width Inches (mm) 70 (1778)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 62 (1575)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 62 (1575)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813)
Work Area Width Inches (mm) 59 7/8 (1521)
Blower/Lights Amps 4.2
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 6
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 1198 (2036)
Heat Rejected (BTU/Hour) 1648
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 450 (204)
Net Weight lbs (kg) 400 (181)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/2 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core
Work Access Opening(s) 38 (965)
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 68 (1727)
Est. Shipping Width Inches (mm) 70 (1778)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406)
Exterior Height Inches (mm) 61 3/8 (1559)
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 62 (1575)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 62 (1575)
Work Area Height Inches (mm) 38 (965)
Work Area Height Inches (mm) 32 (813)
Work Area Width Inches (mm) 59 7/8 (1521)
Blower/Lights Amps 4.8
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 8
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 1422 (2416)
Heat Rejected (BTU/Hour) 1884
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 470 (213)
Net Weight lbs (kg) 420 (191)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/2 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core
Work Access Opening(s) 32 (813)
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 67 (1702)
Est. Shipping Width Inches (mm) 82 (2083)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 74 (1880)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 74 (1880)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813)
Work Area Width Inches (mm) 71 7/8 (1826)
Blower/Lights Amps 5
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 8
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 1438 (2443)
Heat Rejected (BTU/Hour) 1962
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 540 (245)
Net Weight lbs (kg) 470 (213)
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Cord Pass Through Standard on Right and Left Side Wall
IV Bar with 6 Hooks Optional
Outlet(s) Optional under worksurface
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Ultraviolet (UV) Light N/A
Airflow Direction Horizontal
Casters N/A
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Diffuser Metal, non-flammable
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Lighting Standard LED
Motor(s) 1/2 HP DC ECM
Plenum Type HEPEX
Pre-filter Top of Unit
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core
Work Access Opening(s) 32 (813)
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 67 (1702)
Est. Shipping Width Inches (mm) 82 (2083)
Exterior Depth Inches (mm) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 74 (1880)
Footprint Depth inches (mm) 32 (814)
Footprint Width inches (mm) 74 (1880)
Work Area Depth Inches (mm) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813)
Work Area Width Inches (mm) 71 7/8 (1826)
Blower/Lights Amps 5
Electrical Configuration 115V60Hz, 230V5060Hz
Power Cord 12 ft., 14 GA-3 Wire, 15A
Power Cord Length Foot (Meter) 12 (3.7)
Rated Amps 6
Light Intensity fc (Lux) 90-120 (968-1291)
Sound Pressure Level per ISO 4871 Inquire
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Safety Certification UL, UL-C
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Velocity 90 fpm (0.46 mps)
Airflow Volume at 90 fpm (0.46 mps) 1438 (2443)
Heat Rejected (BTU/Hour) 1962
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 540 (245)
Net Weight lbs (kg) 470 (213)

Options

Request Your Quote for a NU-240

Please fill out the form below for a lab equipment quote and we'll get to work on getting you what you need. Need to talk with someone right away? Give us a call at 763-553-1270.

Related Products
