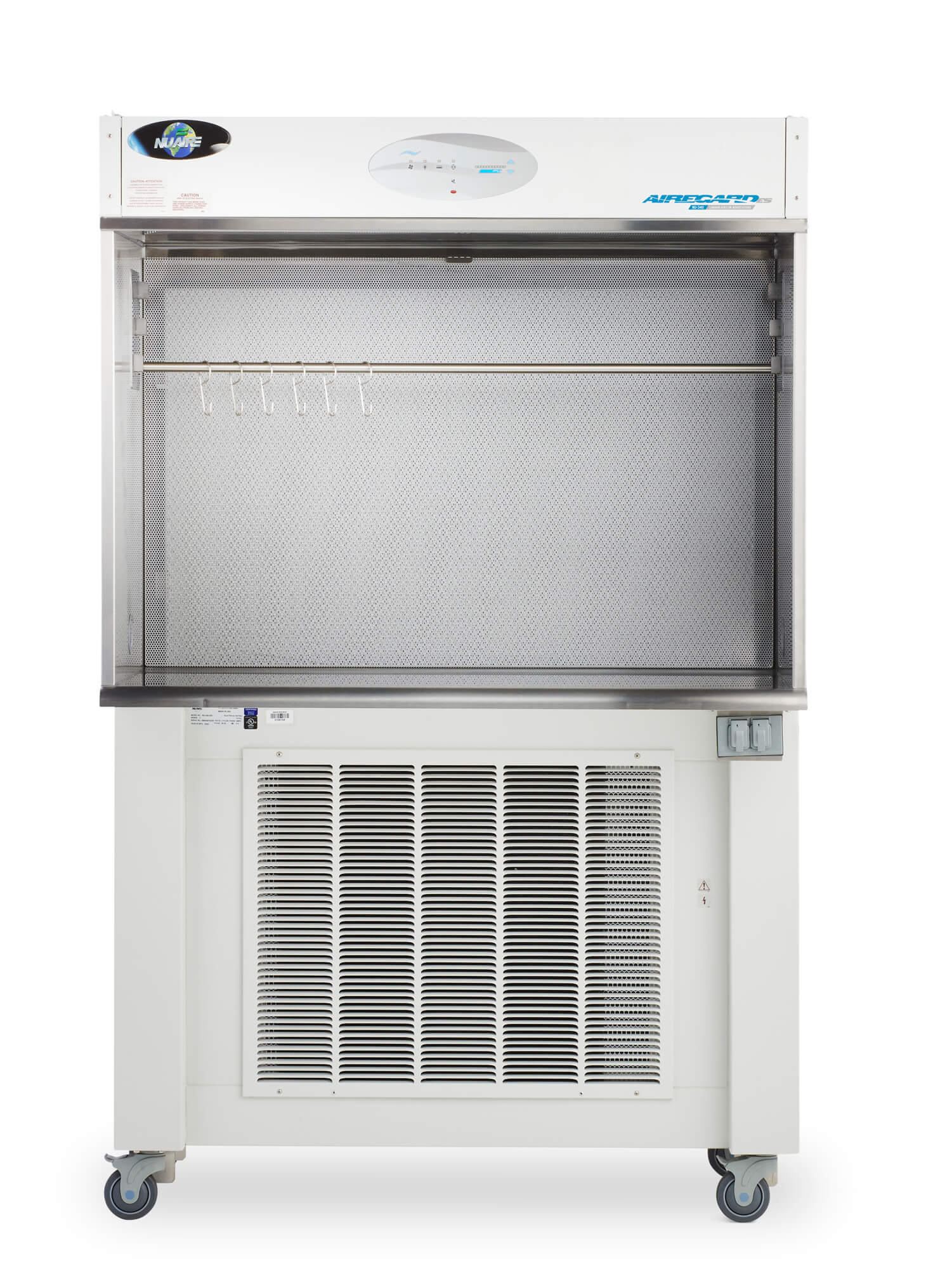

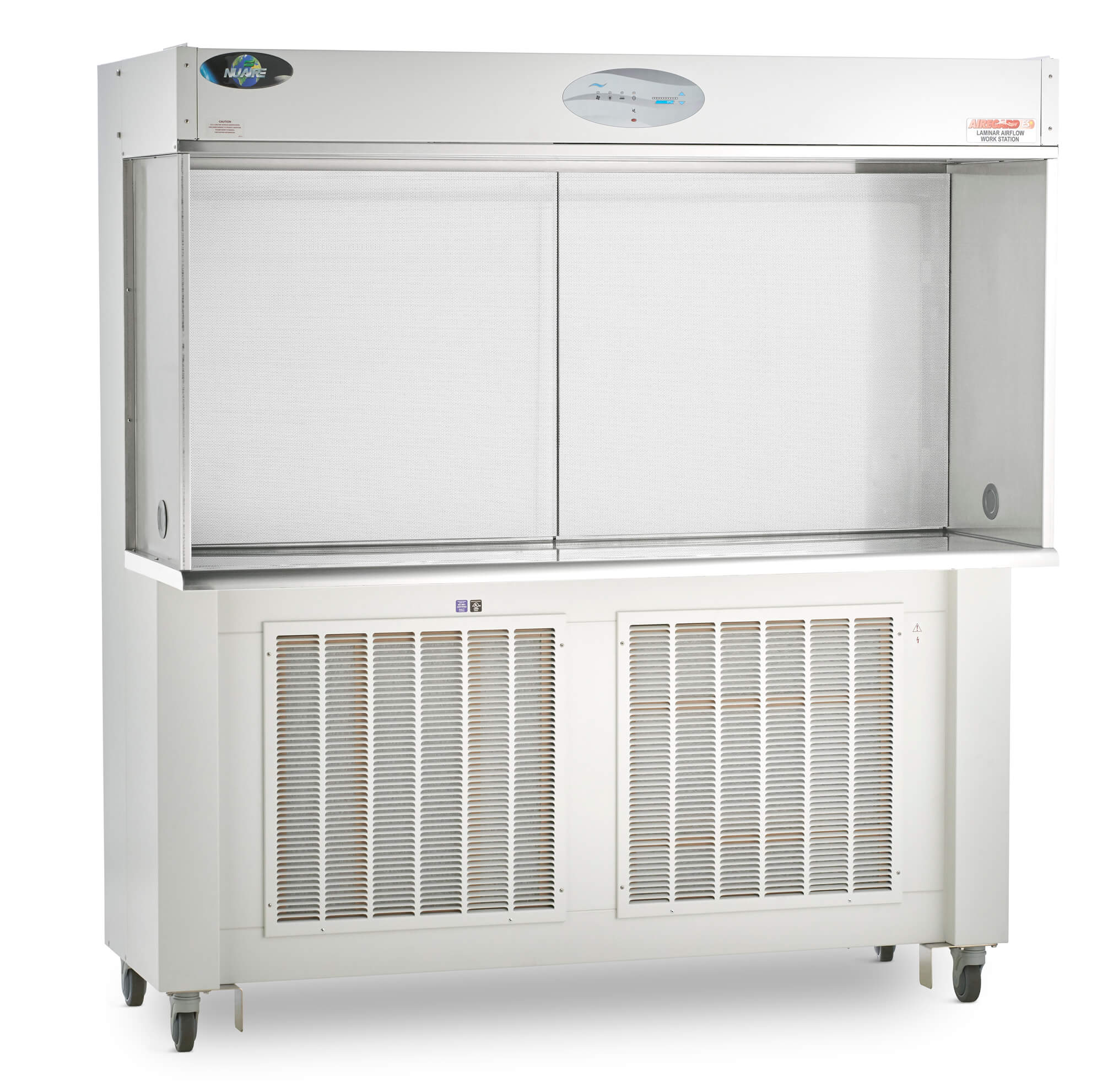

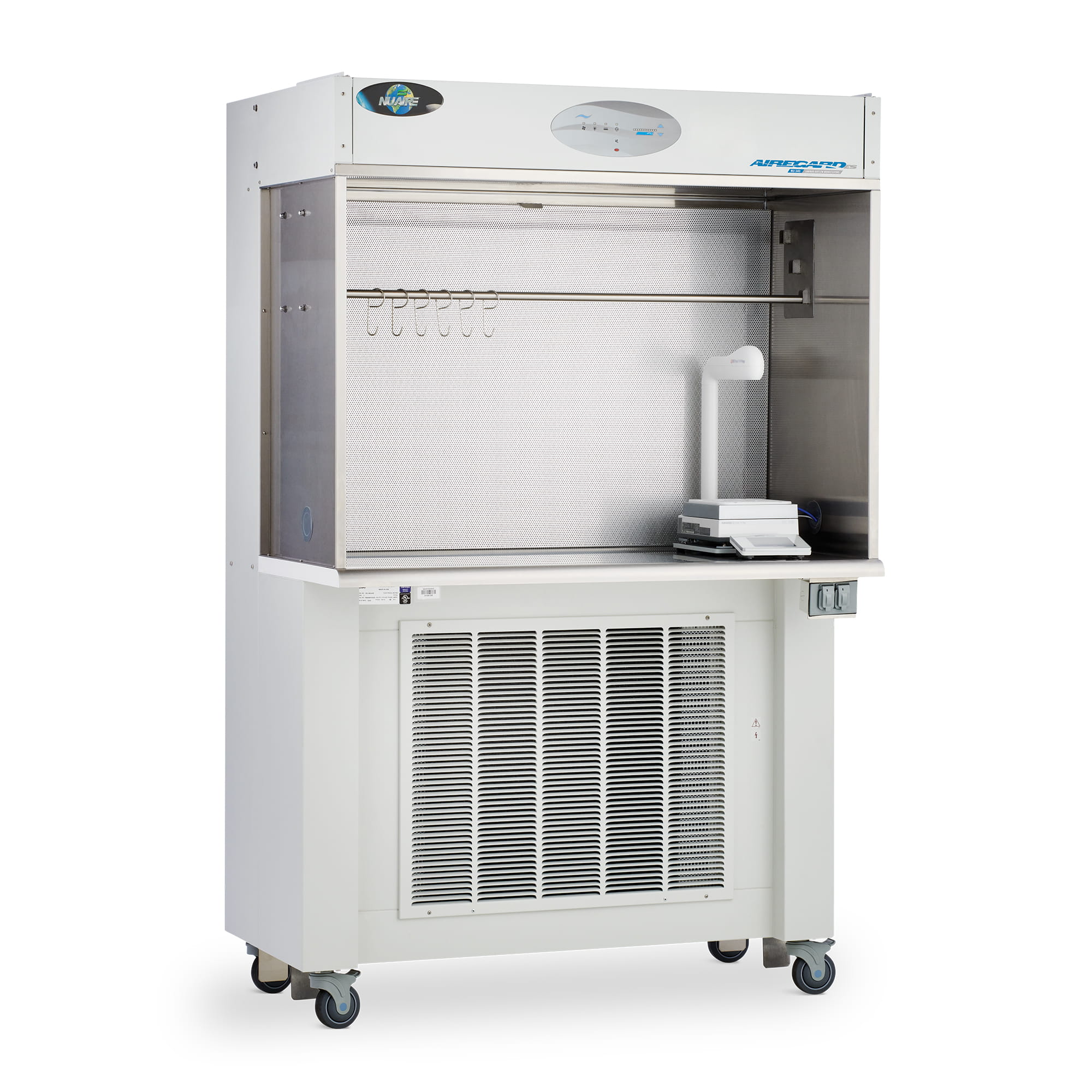

AireGard NU-340 Horizontal Laminar Airflow Workstation
The console configuration AireGard™ NU-340 creates HEPA-filtered, ISO Class 5 horizontal laminar airflow for sterile but non-hazardous drug compounding in pharmacies or non-hazardous work in research labs.
- Overview
- Specifications
- Reviews
- Resources
- Options
Overview

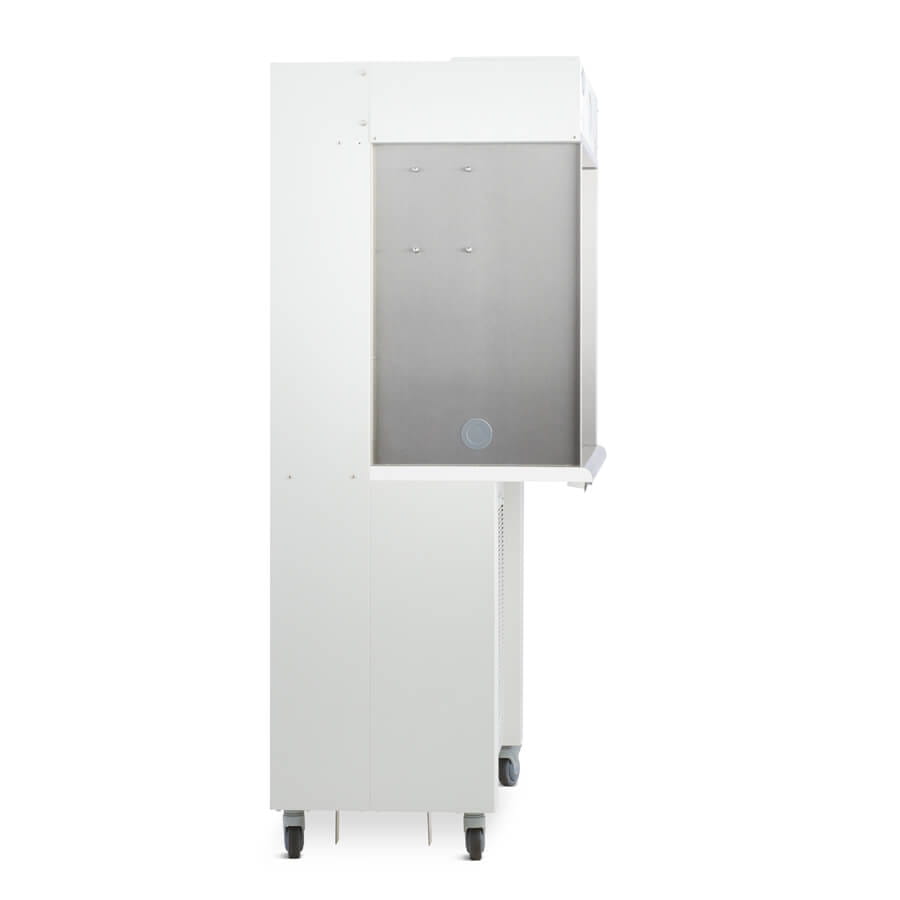

The AireGard™ NU-340 boasts a low-profile console style design, ensuring a seamless fit even in spaces with restricted heights. Its robust stainless steel walls and work surface, enhanced with a PVC core, promise exceptional durability and easy cleanability. HEPA-filtered horizontal laminar airflow ensures ISO Class 5 air purity, making it ideal for sterile drug compounding in pharmacies or meticulous work in research labs. The ultra high efficiency mounted under the work surface draws air through a pre-filter and directs it through a backwall HEPA filter to create an ISO Class 5 level of air cleanliness. The Aeromax™ control system provides real-time airflow monitoring. Standard features include LED lighting and cord pass-throughs, with customizable options like polycarbonate walls, an IV bar, and more for tailored lab or pharmacy setups to meet USP 797 compliance.

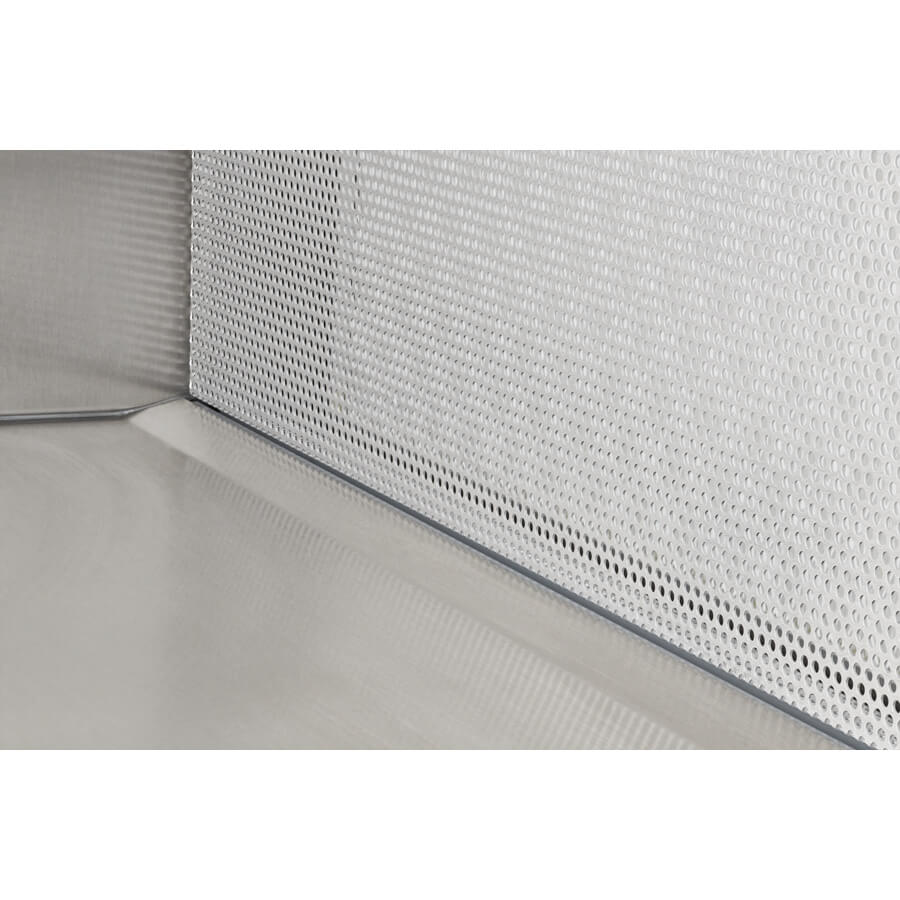

Stainless Steel Work Zone
Crafted for excellence, the stainless-steel sidewalls paired with a work surface fortified with a PVC core ensure impeccable robustness and ease of cleaning. An ideal primary engineering control for your pharmacy or the perfect clean air workbench for your microbiology laboratory

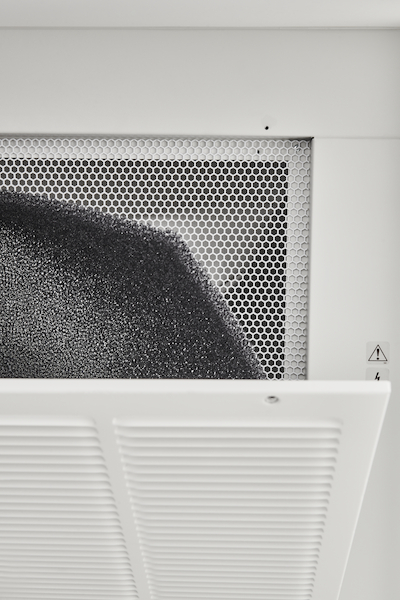

Pre-Filter Under Work Surface
With an innovative console design, the NU-340 smartly places its ultra high efficiency motor and air intake at the base, beneath the work surface. This streamlines its profile and enhances efficiency by deploying a reusable foam pre-filter, capturing larger airborne contaminants. This arrangement ensures an extended HEPA filter lifespan, driving down total ownership costs. Plus, with easy front access, pre-filter maintenance is a breeze.

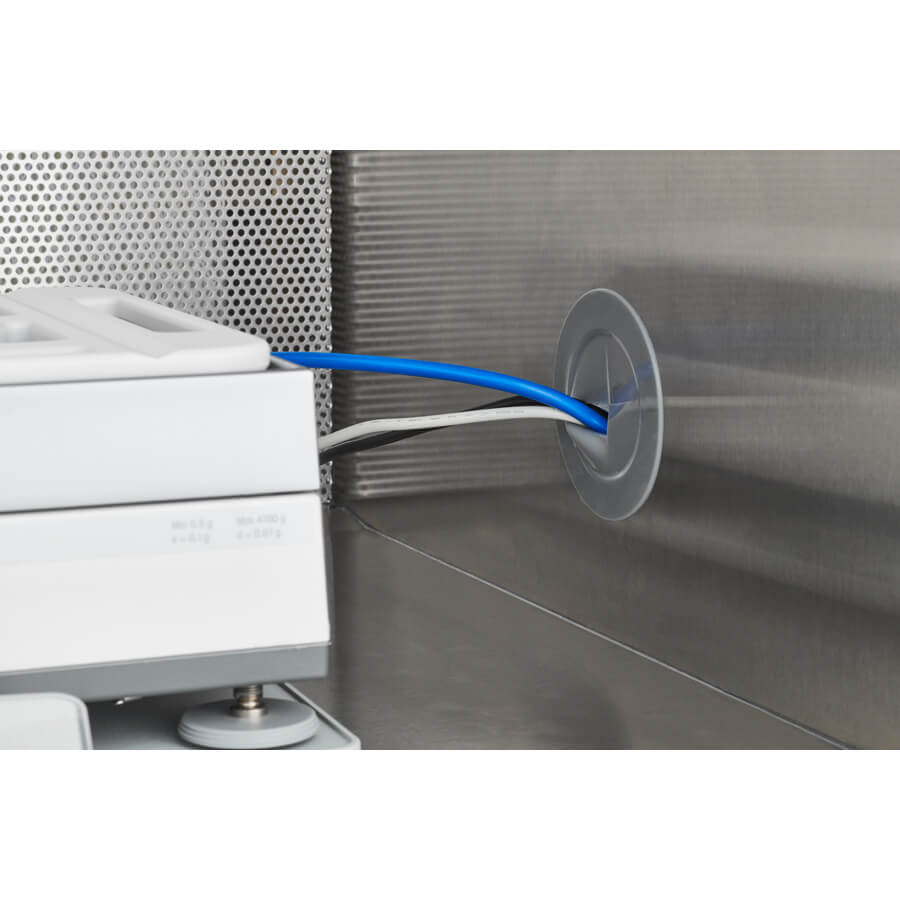

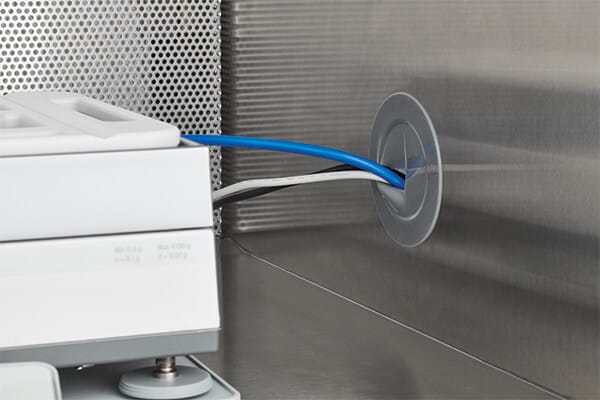

Cable Management
Equipped standard with two cord pass-throughs on each sidewall, our product simplifies your workspace management. Whether using TPN Compounding Machines, Intravenous Workflow Management Systems, or Vacuum Aspiration Systems, effortlessly route and manage your power and data cords within the ISO Class 5 work zone. This intuitive feature promotes organization and ensures a seamless, clutter-free operation, enhancing safety and efficiency.

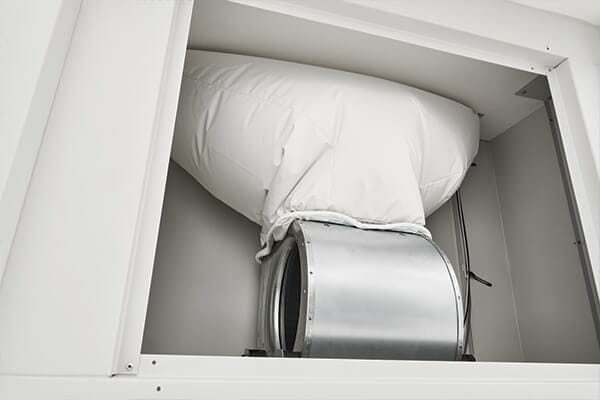

Optimal ISO Class 5 Airflow
Our workstation boasts an ultra-high efficiency motor paired with a meticulously designed forward-curved fan located beneath the work surface. In tandem with the HEPEX zero-leak airflow system, this ensures consistent ISO Class 5 laminar airflow throughout the entire work zone. Furthermore, the integration of the HEPEX bag and the attenumount vibration control system not only minimizes vibration transfer, offering an ergonomic setup for technicians, but also provides protection for delicate cell cultures. As an added advantage, the HEPEX bag serves as an effective sound barrier, fostering a quieter and more conducive working environment for all technicians.
Specifications
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |

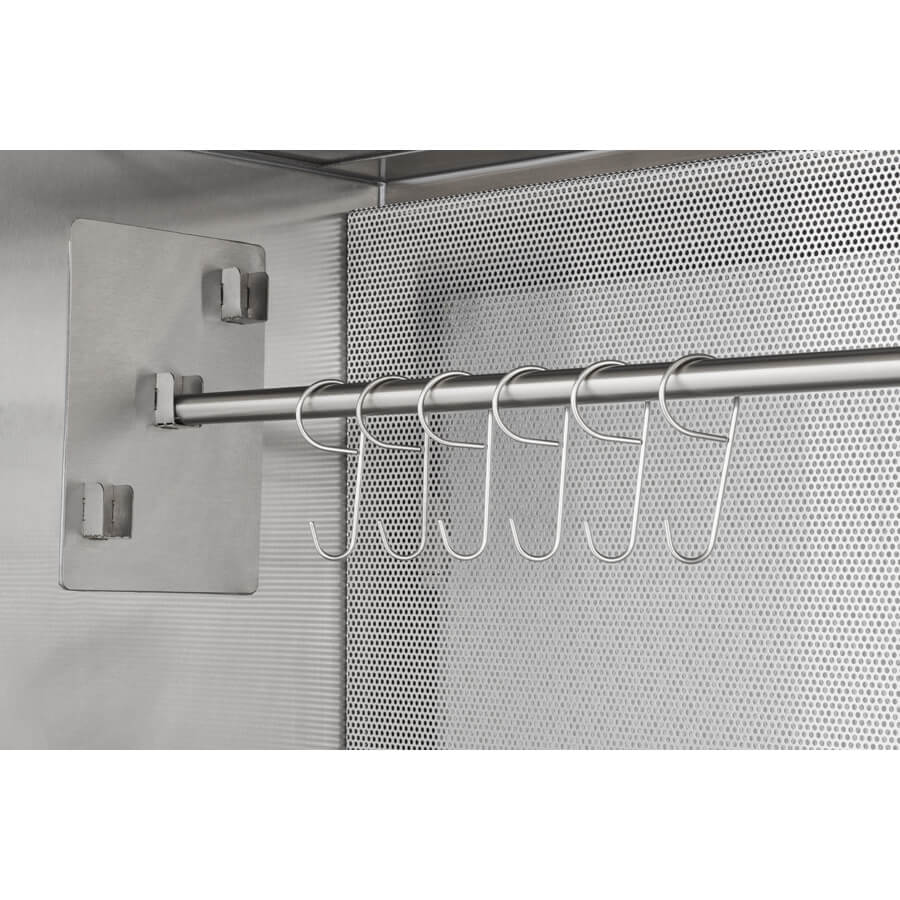

IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/3 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 32 (813) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | |
Est. Shipping Height Inches (mm) | |
Est. Shipping Width Inches (mm) | |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 76 3/8 (1940) with Leg Levelers |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 38 (965) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 38 (965) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 32 (813) |
Work Area Width Inches (mm) | 35 7/8 (911) |
Blower/Lights Amps | 2.2 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 7 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 718 (1220) |
Heat Rejected (BTU/Hour) | 863 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 370 (168) |
Net Weight lbs (kg) | 330 (150) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/3 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 32 (813) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | |
Est. Shipping Height Inches (mm) | |
Est. Shipping Width Inches (mm) | |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 76 3/8 (1940) with Leg Levelers |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 38 (965) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 38 (965) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 32 (813) |
Work Area Width Inches (mm) | 35 7/8 (911) |
Blower/Lights Amps | 2.2 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 5 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 718 (1220) |
Heat Rejected (BTU/Hour) | 863 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 370 (168) |
Net Weight lbs (kg) | 330 (150) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/3 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 38 (965) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | |
Est. Shipping Height Inches (mm) | |
Est. Shipping Width Inches (mm) | |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 82 3/8 (2093) |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 38 (965) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 38 (965) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 38 (965) |
Work Area Width Inches (mm) | 35 7/8 (911) |
Blower/Lights Amps | 2.8 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 7 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 852 (1448) |
Heat Rejected (BTU/Hour) | 1099 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 385 (175) |
Net Weight lbs (kg) | 345 (156) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/2 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 32 (813) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | |
Est. Shipping Height Inches (mm) | |
Est. Shipping Width Inches (mm) | |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 76 3/8 (1940) |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 50 (1270) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 50 (1270) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 32 (813) |
Work Area Width Inches (mm) | 47 7/8 (1216) |
Blower/Lights Amps | 3.2 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 8 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 958 (1628) |
Heat Rejected (BTU/Hour) | 1256 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 440 (200) |
Net Weight lbs (kg) | 390 (177) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/2 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 32 (813) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | |
Est. Shipping Height Inches (mm) | |
Est. Shipping Width Inches (mm) | |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 76 3/8 (1940) with Leg Levelers |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 50 (1270) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 50 (1270) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 32 (813) |
Work Area Width Inches (mm) | 47 7/8 (1216) |
Blower/Lights Amps | 3.2 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 6 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 958 (1628) |
Heat Rejected (BTU/Hour) | 1256 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 440 (200) |
Net Weight lbs (kg) | 390 (177) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/2 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 38 (965) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | |
Est. Shipping Height Inches (mm) | |
Est. Shipping Width Inches (mm) | |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 82 3/8 (2093) |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 50 (1270) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 50 (1270) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 38 (965) |
Work Area Width Inches (mm) | 47 7/8 (1216) |
Blower/Lights Amps | 3.8 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 8 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 1137 (1932) |
Heat Rejected (BTU/Hour) | 1491 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 455 (252) |
Net Weight lbs (kg) | 405 (184) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/2 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 32 (813) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | |
Est. Shipping Height Inches (mm) | |
Est. Shipping Width Inches (mm) | |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 76 3/8 (1940) with Leg Levelers |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 62 (1575) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 62 (1575) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 32 (813) |
Work Area Width Inches (mm) | 59 7/8 (1521) |
Blower/Lights Amps | 4.2 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 8 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 1198 (2036) |
Heat Rejected (BTU/Hour) | 1648 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 510 (231) |
Net Weight lbs (kg) | 460 (209) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/2 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 32 (813) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | |
Est. Shipping Height Inches (mm) | |
Est. Shipping Width Inches (mm) | |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 76 3/8 (1940) with Leg Levelers |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 62 (1575) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 62 (1575) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 32 (813) |
Work Area Width Inches (mm) | 59 7/8 (1521) |
Blower/Lights Amps | 4.2 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 8 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 1198 (2036) |
Heat Rejected (BTU/Hour) | 1648 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 510 (231) |
Net Weight lbs (kg) | 460 (209) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/2 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 38 (965) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | |
Est. Shipping Height Inches (mm) | |
Est. Shipping Width Inches (mm) | |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 82 3/8 (2093) |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 62 (1575) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 62 (1575) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 38 (965) |
Work Area Width Inches (mm) | 59 7/8 (1521) |
Blower/Lights Amps | 4.8 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 8 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 1422 (2416) |
Heat Rejected (BTU/Hour) | 1884 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 530 (240) |
Net Weight lbs (kg) | 480 (218) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/2 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 32 (813) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | 43 (1092) |
Est. Shipping Height Inches (mm) | 88 (2235) |
Est. Shipping Width Inches (mm) | 84 (2134) |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 76 3/8 (1940) with Leg Levelers |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 74 (1880) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 74 (1880) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 32 (813) |
Work Area Width Inches (mm) | 71 7/8 (1826) |
Blower/Lights Amps | 5 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 8 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 1438 (2443) |
Heat Rejected (BTU/Hour) | 1962 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 610 (277) |
Net Weight lbs (kg) | 540 (245) |
Closure Panels | Optional Rear Closure Panels for Seismic Brackets |
Cord Pass Through | Standard on Right and Left Side Wall |
IV Bar with 6 Hooks | Optional |
Outlet(s) | Optional under worksurface |
Seismic Brackets or Studs | Optional Rear or Floor Mount Seismic Brackets |
Service Couplings (3/8-inch NPT) | N/A |
Service Valves (3/8-inch NPT) | Optional up to 3 each sidewall |
Ultraviolet (UV) Light | N/A |
Airflow Direction | Horizontal |
Casters | Optional |
Construction | 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone |
Diffuser | Metal, non-flammable |
HEPA Filter Seal Type | HEPEX Zero Leak Neoprene Seal, Spring-loaded |
Lighting | Standard LED |
Motor(s) | 1/2 HP DC ECM |
Plenum Type | HEPEX |
Pre-filter | Bottom of Unit |
Sidewalls | Standard Stainless Steel, Optional Polycarbonate |
Style | Console |
Supply Filter | 99.99% Efficiency on 0.3 microns |
Work Access Opening(s) | 32 (813) |
Work Surface | Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core |
Est. Shipping Depth Inches (mm) | 43 (1092) |
Est. Shipping Height Inches (mm) | 88 (2235) |
Est. Shipping Width Inches (mm) | 84 (2134) |
Exterior Depth Inches (mm) | 32 (814) |
Exterior Height Inches (mm) | 76 3/8 (1940) with Leg Levelers |
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) | N/A |
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) | N/A |
Exterior Width Inches (mm) | 74 (1880) |
Footprint Depth inches (mm) | 32 (814) |
Footprint Width inches (mm) | 74 (1880) |
Work Area Depth Inches (mm) | 19 5/8 (498) |
Work Area Height Inches (mm) | 32 (813) |
Work Area Width Inches (mm) | 71 7/8 (1826) |
Blower/Lights Amps | 5 |
Electrical Configuration | 115V60Hz, 230V5060Hz |
Power Cord | 12 ft., 14 GA-3 Wire, 15A |
Power Cord Length Foot (Meter) | 12 (3.7) |
Rated Amps | 8 |
Light Intensity fc (Lux) | 90-120 (968-1291) |
Sound Pressure Level per ISO 4871 | Inquire |
Performance Standard | IEST-RP-CC002-4, ISO-14644-1 |
Safety Certification | UL, UL-C |
Air Cleanliness (ISO 14644) | ISO-Class-5 |
Airflow Velocity | 90 fpm (0.46 mps) |
Airflow Volume at 90 fpm (0.46 mps) | 1438 (2443) |
Heat Rejected (BTU/Hour) | 1962 |
Protection | Product |
Control System | AeroMax |
Est. Shipping Weight lbs (kg) | 610 (277) |
Net Weight lbs (kg) | 540 (245) |
Review
Resources
Brochures
Drawings
- NU-340-630 LAFW Casters 115V Cut Sheet
- NU-340-530/NU-340-536 Laminar Airflow Workstation Casters 115V Cut Sheet
- NU-340-430/NU-340-436 Laminar Airflow Workstation Casters 115V Cut Sheet
- NU-340-330/NU-340-336 Laminar Airflow Workstation 115V Cut Sheet
- NU-340-430/NU-340-436 Laminar Airflow Workstation 115V Cut Sheet
- NU-340-330/NU-340-336 Laminar Airflow Workstation Casters 115V Cut Sheet
Specifications
BIM Revit
Warranty
Request Your Quote for a NU-340
Please fill out the form below for a lab equipment quote and we'll get to work on getting you what you need. Need to talk with someone right away? Give us a call at 763-553-1270.
Thank you for completing the form.
We will be in touch. If you have any urgent questions, please reach out at 763-553-1270.
