In-VitroCell NU-5831 Direct Heat CO2 Incubator
- Overview
- Specifications
- Reviews
- Resources
- Options
Overview

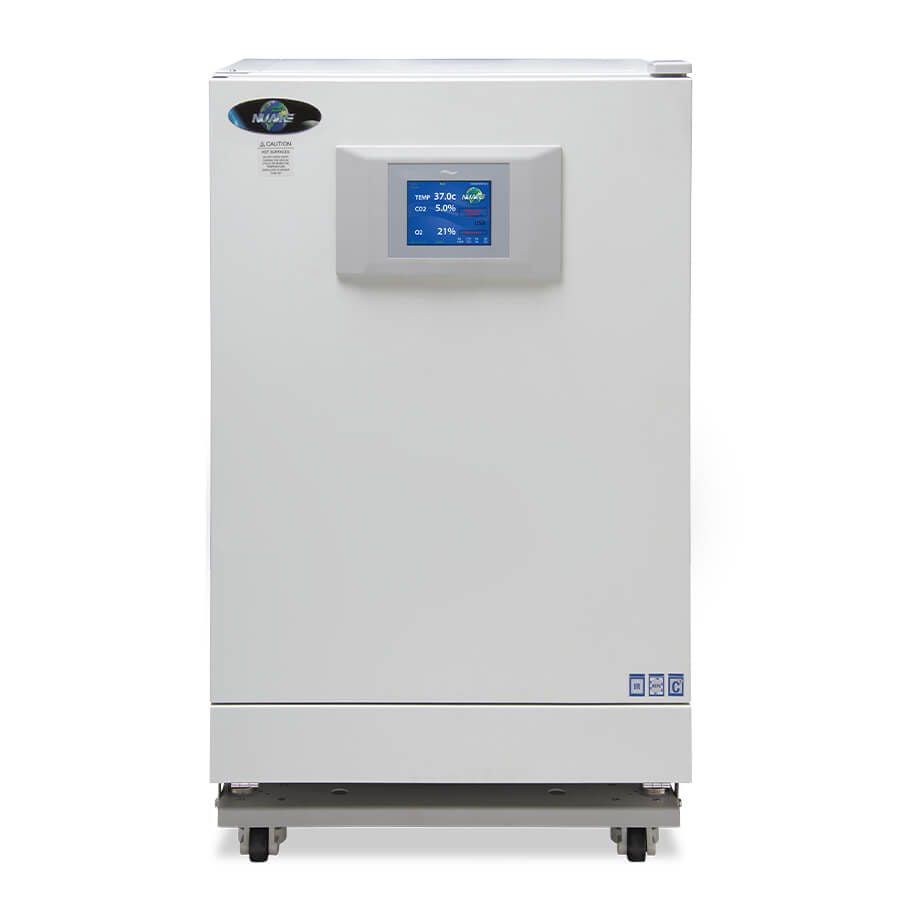

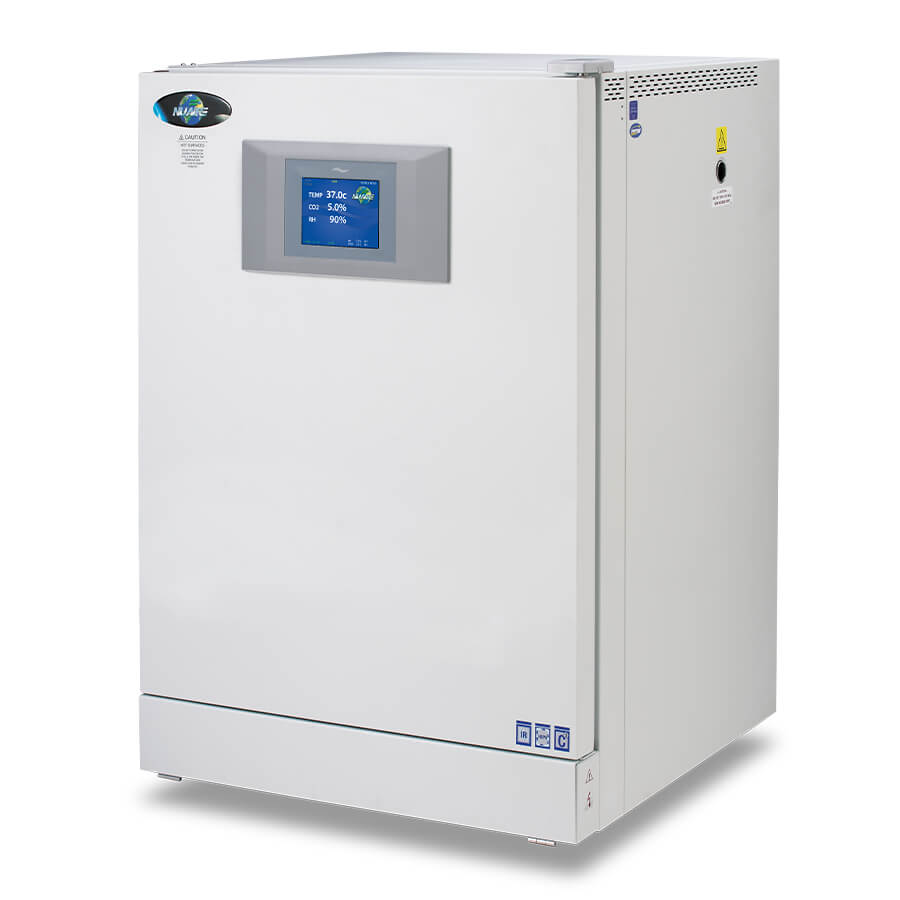

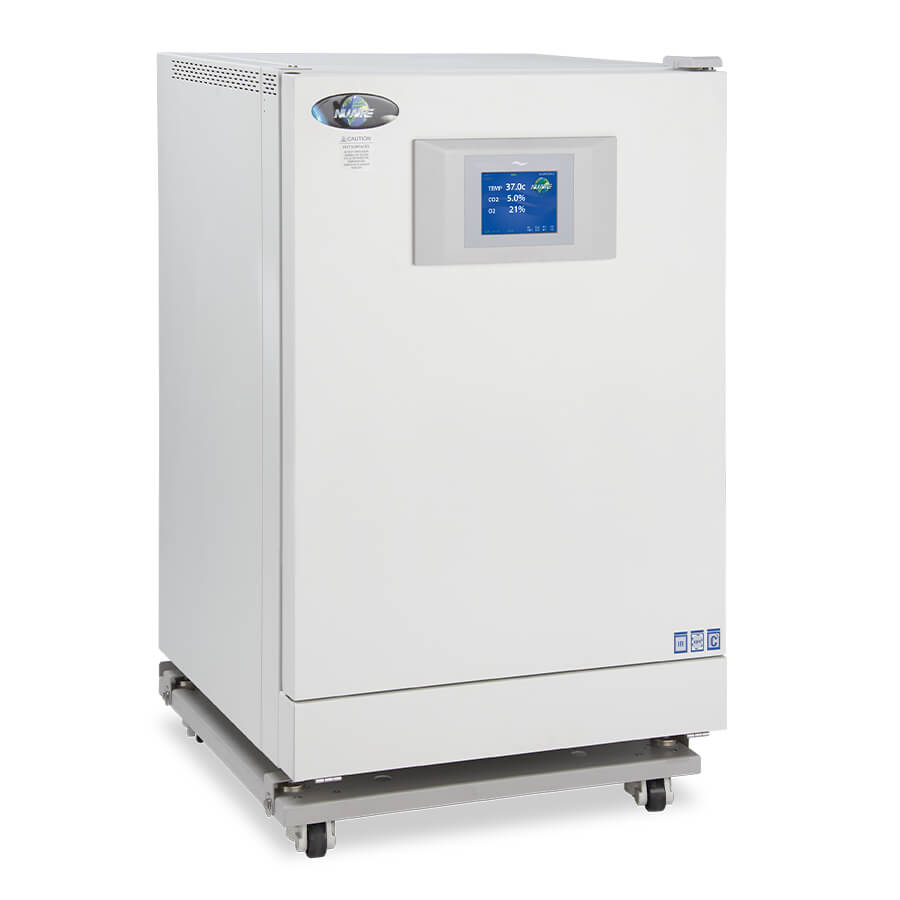

The In-VitroCell NU-5831 represents a state-of-the-art Direct Heat Hypoxic CO2 Incubator that can precisely control oxygen levels within its growth chamber. It has an advanced Zirconia Ceramic O2 sensor that continuously monitors oxygen concentrations within the chamber. Should oxygen levels exceed the desired setpoint, the system activates a nitrogen (N2) gas injection mechanism to restore the ideal conditions.
Featuring a generous 200-liter chamber capacity, the NU-5831 can be optionally configured with segmented inner doors to effectively preserve the chamber's controlled environment even during door openings. This makes it an ideal choice for various applications, including studies related to aging, stem cell research, and other scientific endeavors where precise environmental control is paramount.
Optimized Oxygen Control for Delicate Cells
Safeguarding Cells with Advanced Contamination Control
Uniform Heating for Optimal Incubation
Advanced Filtration for Pure Cultures
Specifications
CO2 Accuracy | ± 0.1% |
CO2 Control Logic | Fixed Algorithm/Manual, Environmental Adaptable |
CO2 Display Resolution | 0.1% |
CO2 Range | 0.1 to 20%, 5% Default Set Point |
CO2 Recovery | Up to 5% ± 0.2% / -0.5 in 5 minutes Average |
CO2 Sensor Type | Infrared (NDIR) |
Segmented Doors | Optional Set of 6 Inner Doors, 2 Across by 3 Down |

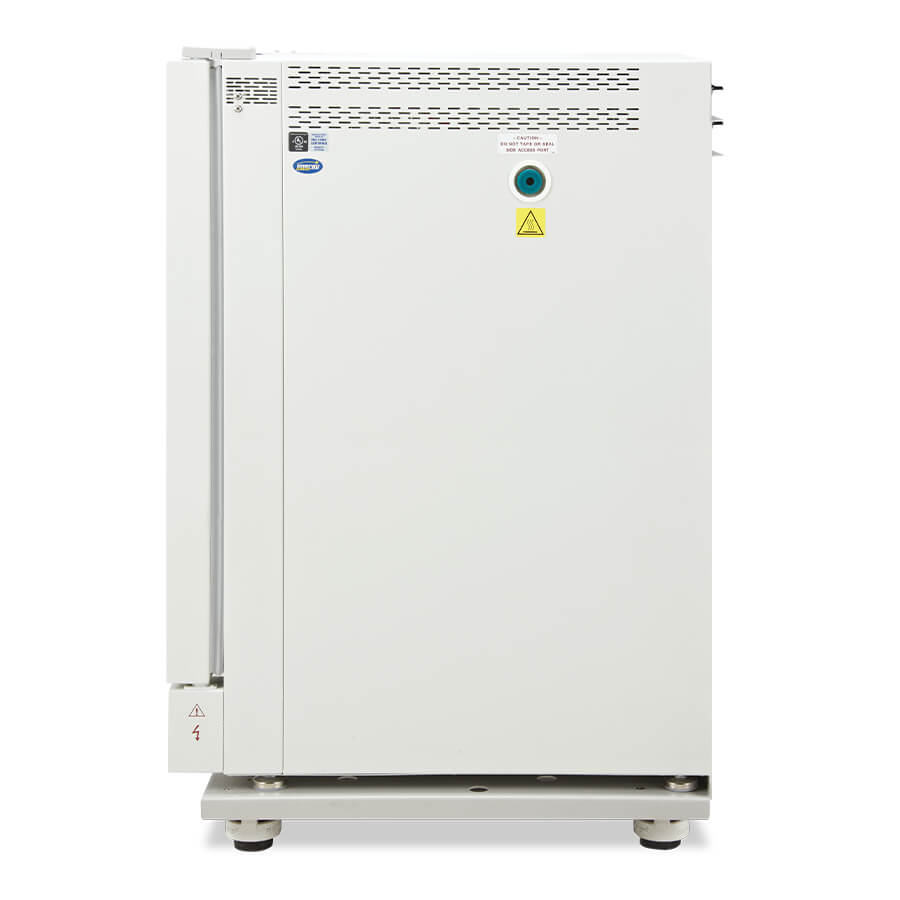

Access Port Location | Right Side |
Chamber Air Filter | 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay |
Exterior Door Seal | Magnetic Outer Door Gasket |
Exterior Material | Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish |

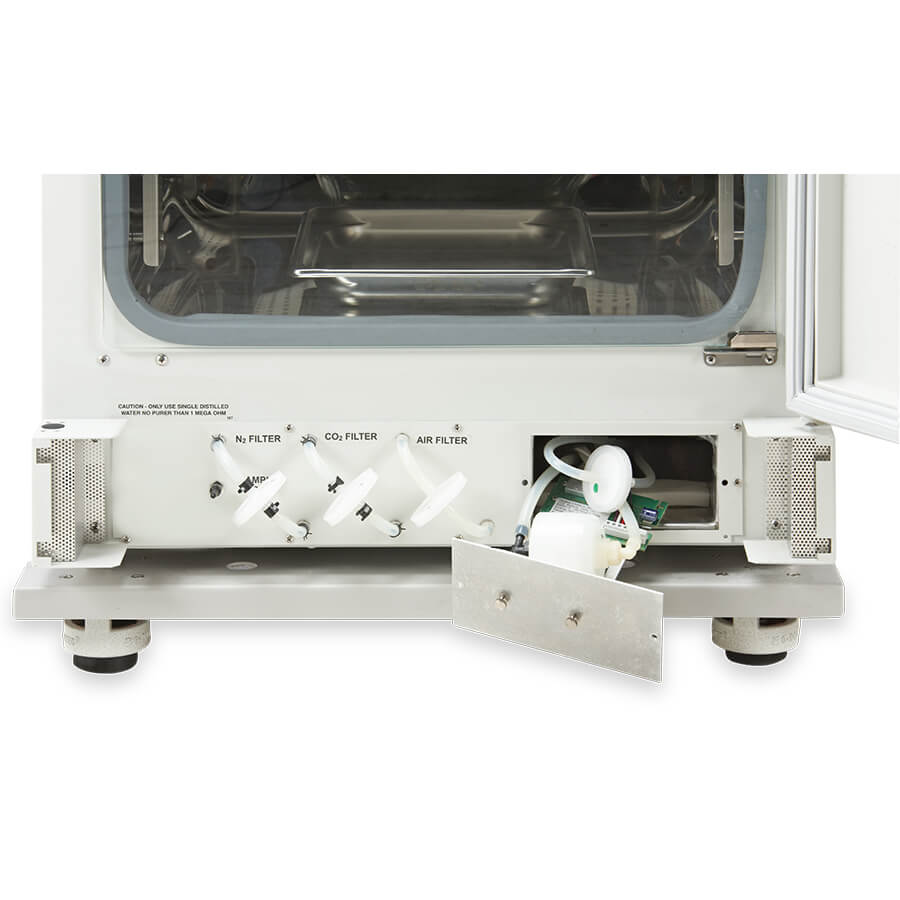

In-line Gas Filters | 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor |
Inner Doors | One, Sectioned Optional |
Insulation | High Density Insulation with High R Rating |
Interior Door Seal | Silicone Rubber Gasket |
Interior Material | Highly Polished Type 304L 16 Gauge Stainless Steel |
Sample Port Location | Inner Glass Door |
Shelf Capacity lbs (kg) | 25 lbs per Shelf / 125 lbs per Incubator |
Shelf Material | Stainless Steel or Copper Alloy |
Shelves | 4 Shelves Supplied, 20 Shelves Maximum Capacity |

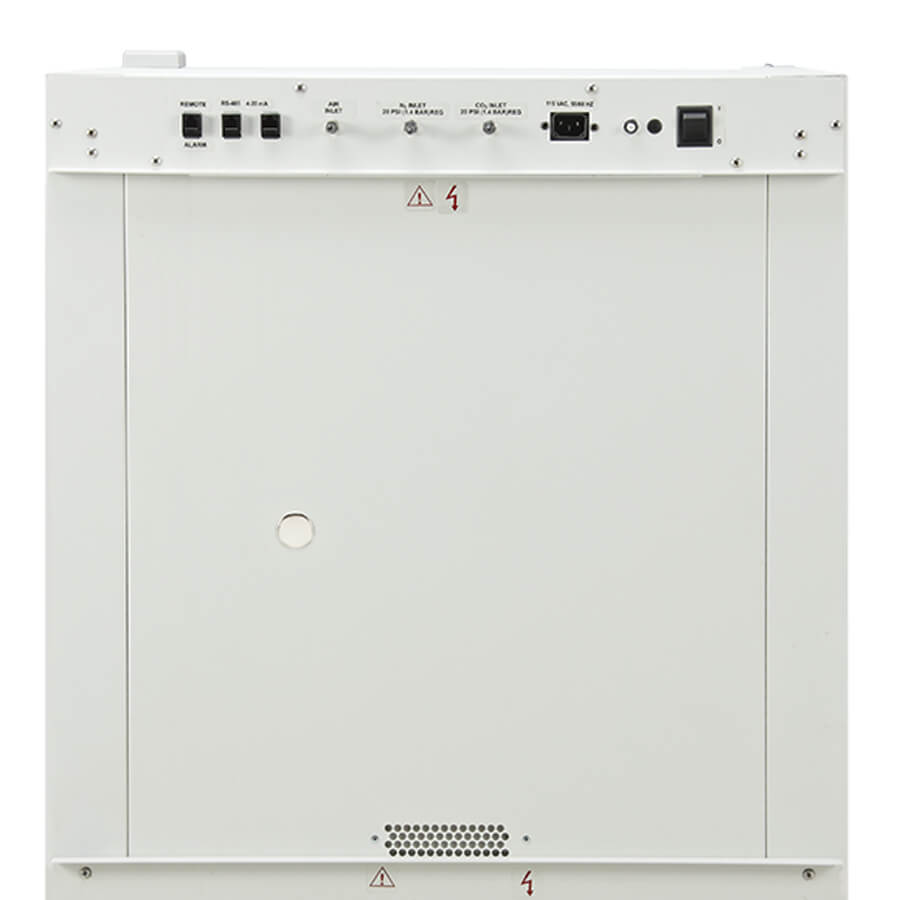

Data Output Features | RS-485, USB, 4-20mA |
Remote Alarm Terminals | Standard |
Est. Shipping Depth Inches (mm) | 31 (787) |
Est. Shipping Height Inches (mm) | 51 (1219) |
Est. Shipping Width Inches (mm) | 31 (787) |
Exterior Depth Inches (mm) | 27.188 (691) |
Exterior Height Inches (mm) | 39.688 (1008) |
Exterior Width Inches (mm) | 26.750 (680) |
Footprint Depth inches (mm) | 20.75 (527) |
Footprint Width inches (mm) | 23.75 (603) |
Interior Depth Inches (mm) | 20.053 (509) |
Interior Height Inches (mm) | 28.500 (724) |
Interior Volume Cubic Feet (Liters) | 7.06 (200) |
Interior Width Inches (mm) | 21.257 (540) |
Shelf Depth Inches (mm) | 18 3/4 (476) |
Shelf Width Inches (mm) | 19 3/4 (502) |
Water Pan Depth | 1.5 (38) |
Water Pan Length Inches (mm) | 12 (305) |
Water Pan Width | 10 (254) |
Electrical Configuration | 115V 60Hz |
Power Cord Length Foot (Meter) | 8 (2.5) |
Safety Certification | UL, UL-C |
O2 Accuracy | ± 0.25% |
O2 Control Logic | Fixed algorithm/ manual environmental adaptable |
O2 Display Resolution | 0.1% |
O2 Measuring Range | 0 - 25% |
O2 Recovery | 5.0 ± 0.5% twenty minutes on Average |
O2 Sensor Type | Zirconia Ceramic |
O2 Set Point Range | 0.5 -21.0% (ambient) (21.0% Default) |
Decontamination Cycle | 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle |
Chamber Air Circulation Method | Air Pump |
Chamber Jacket Technology | Air Jacket via Two Axial Fans Drawing Air into Shell |

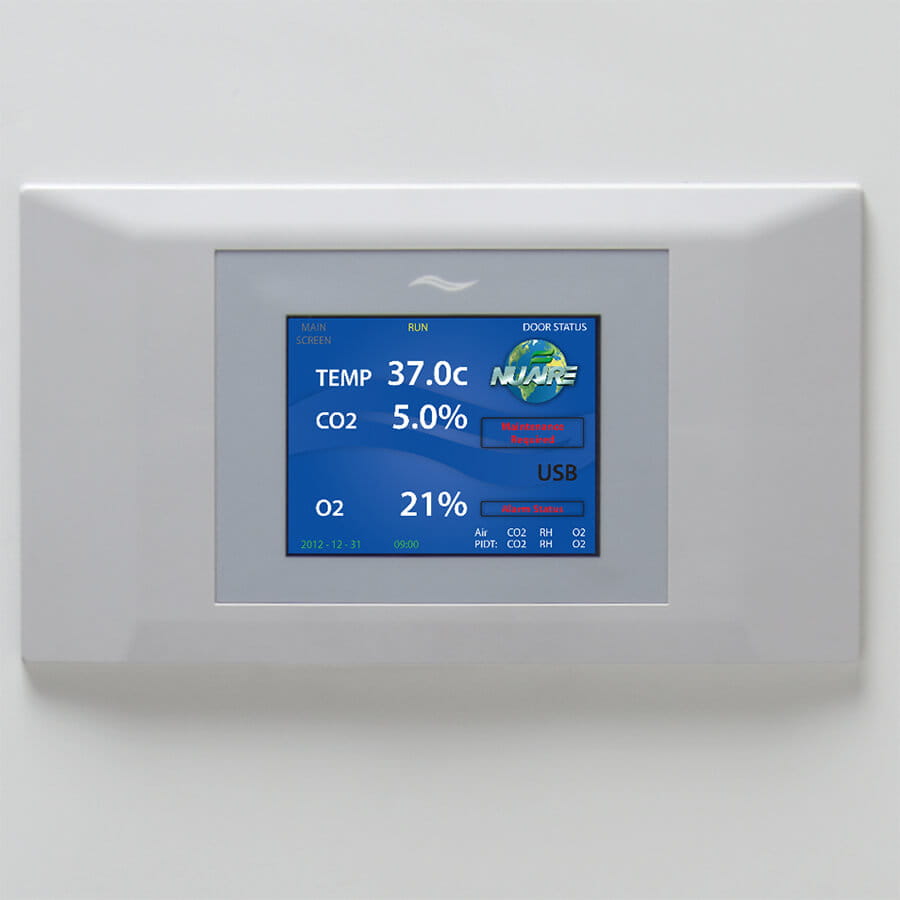

Control System | NuTouch |
Chamber Heater(s) Location | Sides, Bottom, Top and Back of Chamber |
Door and Perimeter Heater Control Logic | Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable] |
Temperature Accuracy °C | ± 0.1% |
Temperature Control | Direct Heat |
Temperature Control Range | 5°C above ambient (to a 30°C max ambient) to 55°C |
Temperature Display Resolution | 0.1°C |
Temperature Recovery | 0.12°C/min. on Average |
Temperature Sensor Type | Precision Integrated Circuit |
Temperature Set-Point Range | 5°C to 55°C (37.0°C Default) |
Temperature Uniformity °C | ± 0.35°C @ 37°C |
Est. Shipping Weight lbs (kg) | 325 (147) |
Net Weight lbs (kg) | 235 (106) |
CO2 Accuracy | ± 0.1% |
CO2 Control Logic | Fixed Algorithm/Manual, Environmental Adaptable |
CO2 Display Resolution | 0.1% |
CO2 Range | 0.1 to 20%, 5% Default Set Point |
CO2 Recovery | Up to 5% ± 0.2% / -0.5 in 5 minutes Average |
CO2 Sensor Type | Infrared (NDIR) |
Segmented Doors | Optional Set of 6 Inner Doors, 2 Across by 3 Down |
Access Port Location | Right Side |
Chamber Air Filter | 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay |
Exterior Door Seal | Magnetic Outer Door Gasket |
Exterior Material | Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish |
In-line Gas Filters | 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor |
Inner Doors | One, Sectioned Optional |
Insulation | High Density Insulation with High R Rating |
Interior Door Seal | Silicone Rubber Gasket |
Interior Material | Highly Polished Type 304L 16 Gauge Stainless Steel |
Sample Port Location | Inner Glass Door |
Shelf Capacity lbs (kg) | 25 lbs per Shelf / 125 lbs per Incubator |
Shelf Material | Stainless Steel or Copper Alloy |
Shelves | 4 Shelves Supplied, 20 Shelves Maximum Capacity |
Data Output Features | RS-485, USB, 4-20mA |
Remote Alarm Terminals | Standard |
Est. Shipping Depth Inches (mm) | 31 (787) |
Est. Shipping Height Inches (mm) | 51 (1219) |
Est. Shipping Width Inches (mm) | 31 (787) |
Exterior Depth Inches (mm) | 27.188 (691) |
Exterior Height Inches (mm) | 39.688 (1008) |
Exterior Width Inches (mm) | 26.750 (680) |
Footprint Depth inches (mm) | 20.75 (527) |
Footprint Width inches (mm) | 23.75 (603) |
Interior Depth Inches (mm) | 20.053 (509) |
Interior Height Inches (mm) | 28.500 (724) |
Interior Volume Cubic Feet (Liters) | 7.06 (200) |
Interior Width Inches (mm) | 21.257 (540) |
Shelf Depth Inches (mm) | 18 3/4 (476) |
Shelf Width Inches (mm) | 19 3/4 (502) |
Water Pan Depth | 1.5 (38) |
Water Pan Length Inches (mm) | 12 (305) |
Water Pan Width | 10 (254) |
Electrical Configuration | 230V 50/60Hz |
Power Cord Length Foot (Meter) | 8 (2.5) |
Safety Certification | UL, UL-C |
O2 Accuracy | ± 0.25% |
O2 Control Logic | Fixed algorithm/ manual environmental adaptable |
O2 Display Resolution | 0.1% |
O2 Measuring Range | 0 - 25% |
O2 Recovery | 5.0 ± 0.5% twenty minutes on Average |
O2 Sensor Type | Zirconia Ceramic |
O2 Set Point Range | 0.5 -21.0% (ambient) (21.0% Default) |
Decontamination Cycle | 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle |
Chamber Air Circulation Method | Air Pump |
Chamber Jacket Technology | Air Jacket via Two Axial Fans Drawing Air into Shell |
Control System | NuTouch |
Chamber Heater(s) Location | Sides, Bottom, Top and Back of Chamber |
Door and Perimeter Heater Control Logic | Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable] |
Temperature Accuracy °C | ± 0.1% |
Temperature Control | Direct Heat |
Temperature Control Range | 5°C above ambient (to a 30°C max ambient) to 55°C |
Temperature Display Resolution | 0.1°C |
Temperature Recovery | 0.12°C/min. on Average |
Temperature Sensor Type | Precision Integrated Circuit |
Temperature Set-Point Range | 5°C to 55°C (37.0°C Default) |
Temperature Uniformity °C | ± 0.35°C @ 37°C |
Est. Shipping Weight lbs (kg) | 325 (147) |
Net Weight lbs (kg) | 235 (106) |
