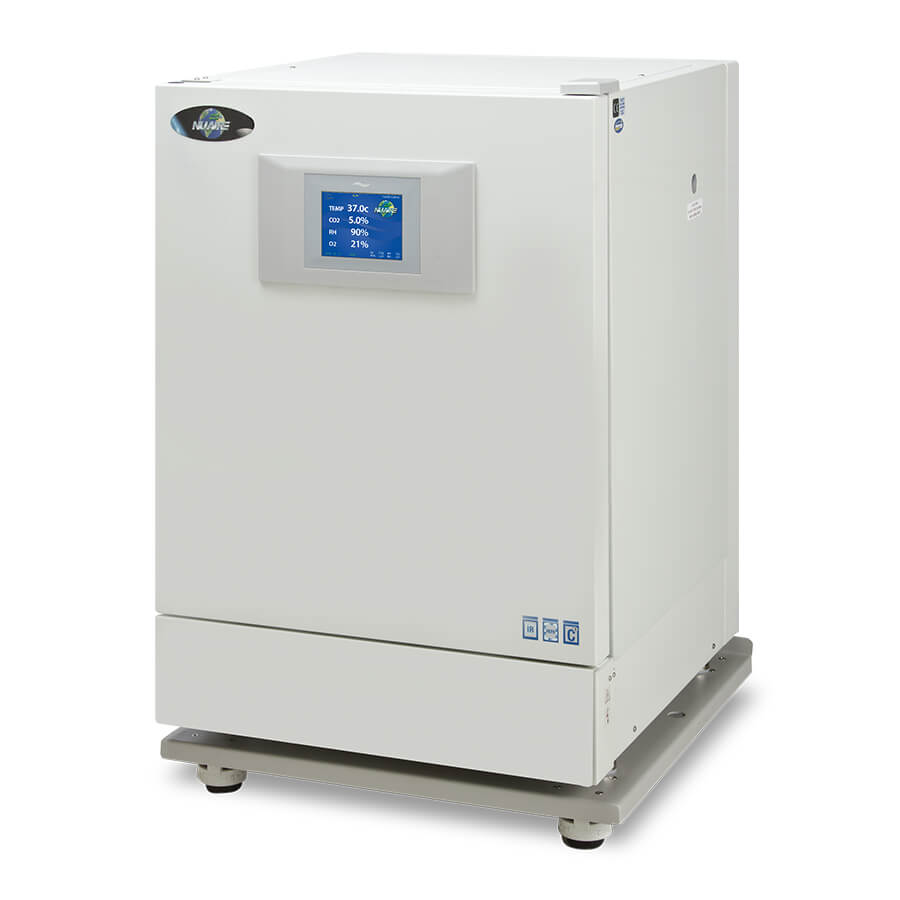

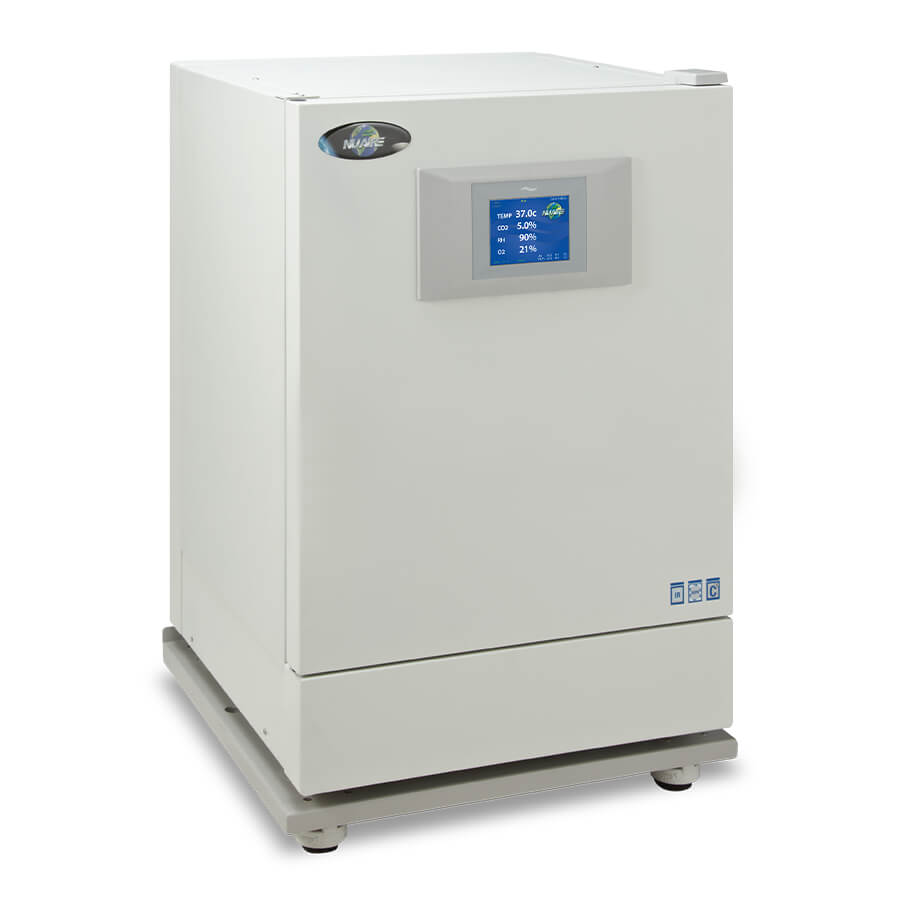

In-VitroCell NU-8645 Water Jacket CO2 Incubator

Name: In-VitroCell NU-8645 Water Jacket CO2 Incubator | NuAire
Brand: In-VitroCell

The In-VitroCell NU-8645 CO2 Incubator offers precise temperature and humidity control, essential for advanced mammalian tissue culture studies. Its water jacket design and oxygen suppression system provide a stable environment for critical research applications.

Request Your Quote

Ask a Question

Overview
Specifications
Reviews
Resources
Options

Overview

The In-VitroCell NU-8645 CO2 Incubator sets a new standard for cell culture precision. Its innovative water jacket system consistently regulates temperature, while an advanced oxygen suppression system adjusts O2 levels for varied research needs. Equipped with a humidity generation system and intuitive touchscreen controls, this incubator ensures uniform, stable conditions crucial for sensitive mammalian tissue culture research.

Optimal O2 Control for Delicate Cell Cultures

Elevate your cell culture research with our CO2 Incubators equipped with precise Oxygen Control. Tailored for labs focusing on sensitive cell cultures, these incubators feature a state-of-the-art O2 sensor to monitor and regulate oxygen levels in the growth chamber accurately. The capability to fine-tune oxygen concentration through Nitrogen (N2) gas injection is essential for a broad spectrum of research applications, from neurological to cardiac studies. Our CO2 Incubators are especially critical for maintaining the health and integrity of cell lines vulnerable to stress and DNA damage. For researchers in fields like mammalian cell culture, stem cell research, and age-related studies, these incubators offer the precision and reliability needed for advanced cell culture experiments.

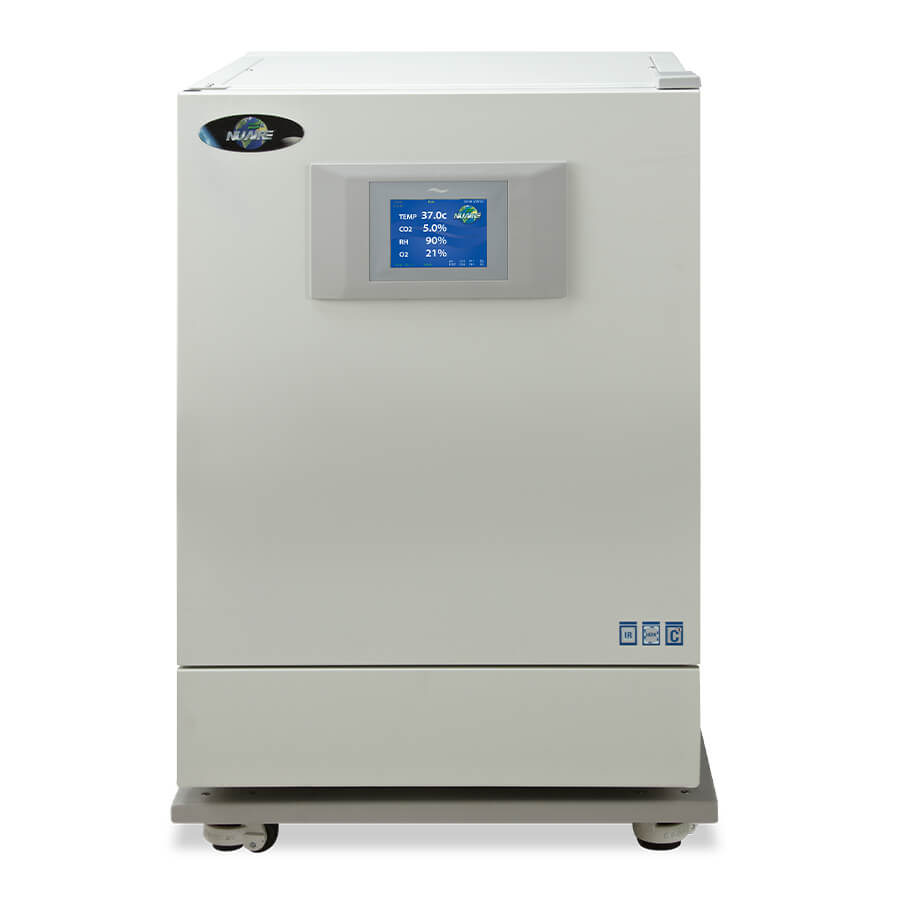

Advanced Humidity Monitoring

The NU-8645 CO2 Incubator has an advanced humidity monitor, a vital laboratory tool focused on sensitive cell cultures. The integrated RH sensor accurately assesses and maintains relative humidity levels up to 90% within the growth chamber. This feature primarily benefits lab technicians working with cell cultures susceptible to desiccation. By maintaining optimal humidity conditions and allowing real-time tracking, the incubator ensures the microenvironment is ideally suited for preserving cell integrity and viability. Whether for mammalian cell culture, stem cell research, or age-related studies, this careful humidity control is vital to achieving consistent and reproducible results in cutting-edge scientific research.

Precision Temperature Control for Superior Cell Cultures

Experience unparalleled precision in cell culture environments with the In-VitroCell Water Jacket CO2 Incubators. These incubators are designed with a substantial 18-gallon (68.1-liter) water jacket encircling the inner chamber to provide unwavering temperature stability, essential for delicate mammalian and stem cell cultures and critical hypoxic and age-related studies. The heated water circulates consistently, ensuring temperature uniformity within ±0.2°C throughout the growth chamber. Enhanced by R5 insulation, heat retention is maximized, significantly reducing energy consumption.

Advanced microprocessor-controlled door and perimeter heaters adapt effortlessly to varying room temperatures, maintaining an optimal environment for cell growth. Manual adjustments up to ±20 percent are possible, offering flexibility to reduce condensation and ensure the integrity of your sensitive cell cultures. This state-of-the-art incubator is a vital tool for laboratory professionals aiming to achieve consistent, reproducible results in cell culture applications.

Advanced IR Sensor for Precise CO2 Control

Our CO2 incubators introduce an era of heightened precision in cell culture environments with their state-of-the-art infrared (IR) sensor technology. This microprocessor-based, non-dispersive IR sensor is meticulously engineered to control CO2 levels within the chamber with unmatched accuracy. Its unique design ensures the absorption of wavelengths solely by CO2, thereby eliminating interference from other components like water vapor. This level of precision is pivotal for research applications, including mammalian cell culture, stem cell studies, and hypoxic research, where the slightest deviation in CO2 levels can impact results significantly. The advanced design of this sensor not only assures stable outputs but also reduces the need for frequent calibrations, making it a dependable and efficient choice for laboratories striving for excellence in cell culture growth and reproducibility.

Specifications

Product Series In-VitroCell NU-8645 Water Jacketed CO2 Incubator

CO2 Accuracy	± 0.1%
CO2 Control Logic	Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution	0.1%
CO2 Range	0.1 to 20%, 5% Default Set Point
CO2 Recovery	Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type	Infrared (NDIR)

Segmented Doors

Optional Set of 4 Inner Doors

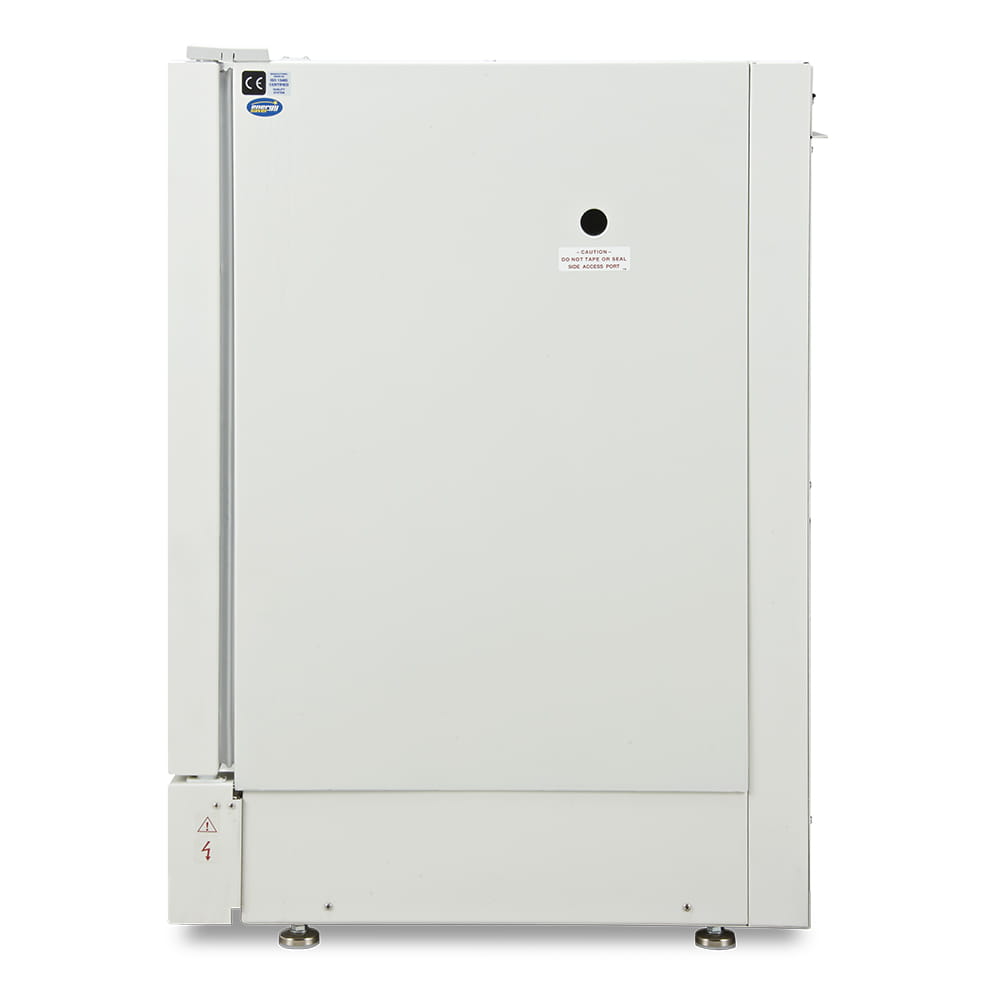

Access Port Location	Right Side
Chamber Air Filter	99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Exterior Door Seal	Magnetic Outer Door Gasket
Exterior Material	16 Gauge Steel with Textured Polyurethane Finish

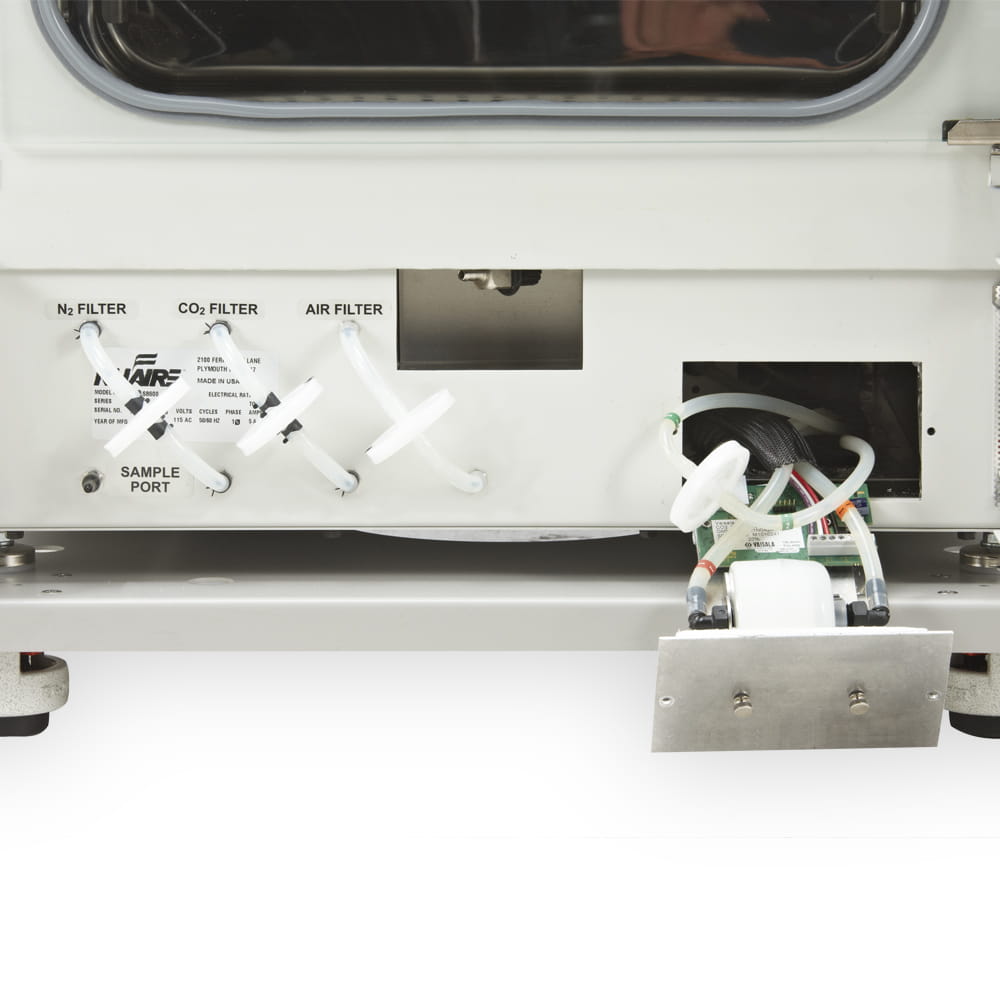

In-line Gas Filters	99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors	One Standard, Sectional optional
Insulation	Insulation with R5.0 Rating
Interior Door Seal	Silicone Rubber Gasket
Interior Material	Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location	Inner Glass Door
Shelf Capacity lbs (kg)	25 lbs per Shelf / 125 lbs per Incubator
Shelf Material	Stainless Steel or Copper Alloy
Shelves	4 Shelves Supplied, 16 Shelves Maximum Capacity

Data Output Features	RS-485, USB, 4-20mA

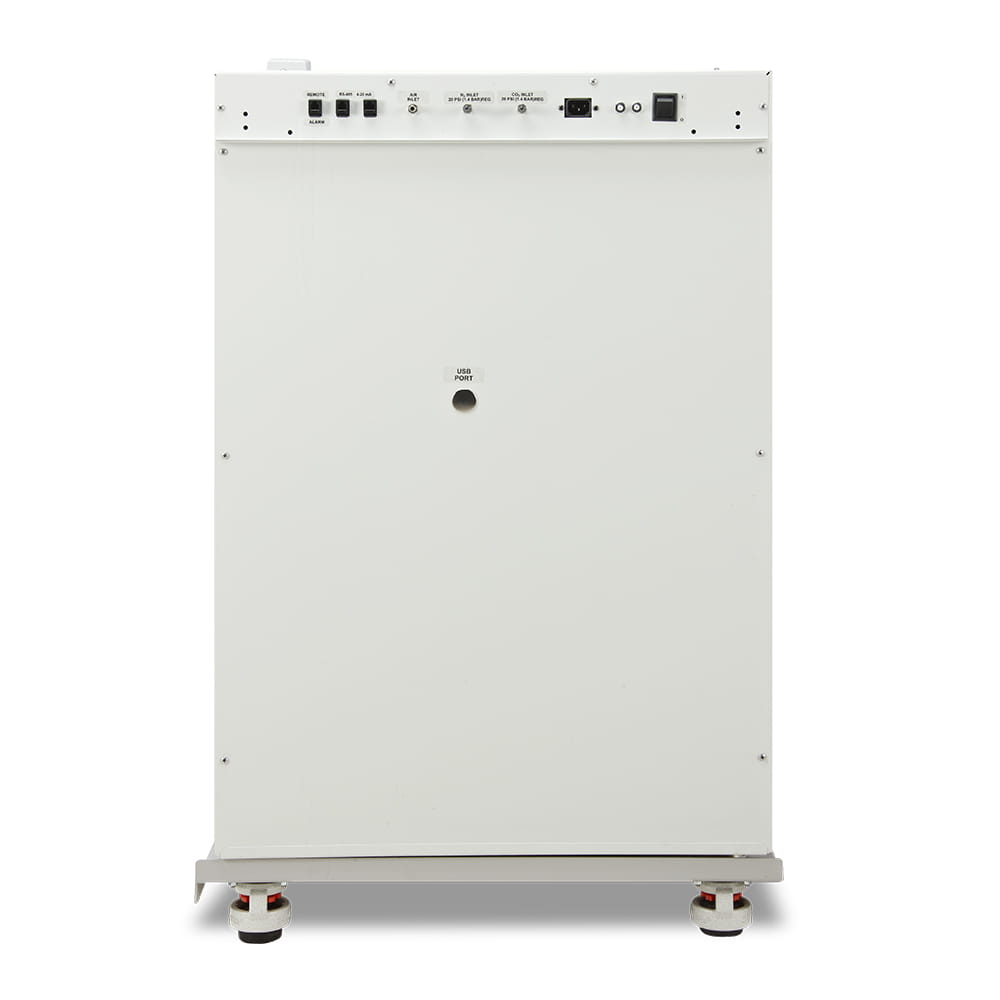

Remote Alarm Terminals	Standard

Est. Shipping Depth Inches (mm)	33 (838)
Est. Shipping Height Inches (mm)	49 (1245)
Est. Shipping Width Inches (mm)	31 (787)
Exterior Depth Inches (mm)	27 (685)
Exterior Height Inches (mm)	37.75 (958)
Exterior Width Inches (mm)	25.625 (649)
Footprint Depth inches (mm)	17.5 (445)
Footprint Width inches (mm)	22 (557)
Interior Depth Inches (mm)	20.625 (524)
Interior Height Inches (mm)	24 (611)
Interior Volume Cubic Feet (Liters)	5.65 (160)
Interior Width Inches (mm)	20.375 (518)
Shelf Depth Inches (mm)	18 3/4 (476)
Shelf Width Inches (mm)	18 (457)
Water Pan Depth	1.5 (38)
Water Pan Length Inches (mm)	12 (305)
Water Pan Width	10 (254)

Electrical Configuration	115V 60Hz
Power Cord Length Foot (Meter)	8 (2.5)

Safety Certification

UL, UL-C, UK CA

O2 Accuracy	± 0.25%
O2 Control Logic	Fixed algorithm/ manual environmental adaptable
O2 Display Resolution	0.1%
O2 Measuring Range	0 - 25%
O2 Recovery	5.0 ± 0.5% twenty minutes on Average
O2 Sensor Type	Zirconia Ceramic
O2 Set Point Range	0.5 -21.0% (ambient) (21.0% Default)

Decontamination Cycle

Not available

RH Accuracy	+5% / -3%
RH Control Method	Water Pan
RH Control Range	0 - 100% (RH) / -40°C - +60°C (Temp)
RH Display Resolution	0.1%
RH Sensor Type	Precision capacitance bulk-polymer
RH Water Pan Capacity	2L (Recommended Fill 1.5L)

Chamber Air Circulation Method	Air Pump
Chamber Jacket Technology	Water Jacket, 18 Gallon (68-Liter)

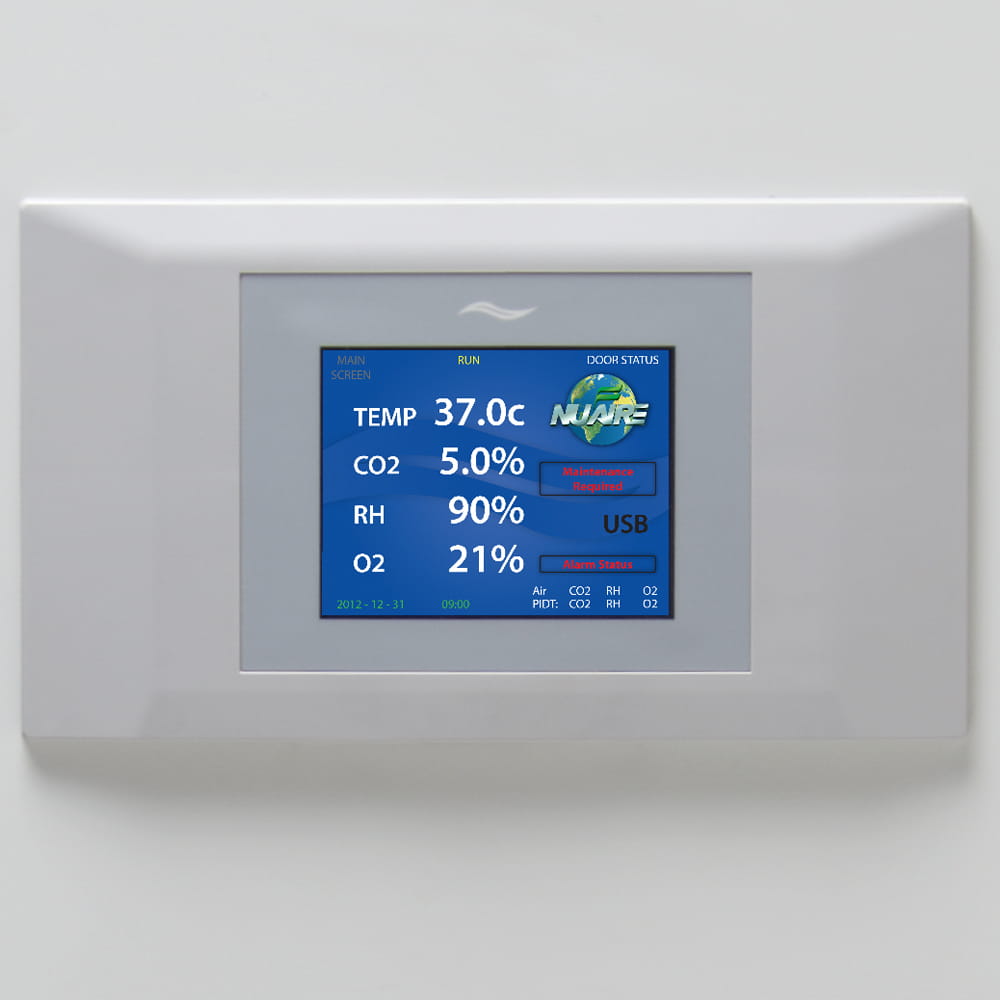

Control System	NuTouch

Chamber Heater(s) Location	Bottom of Chamber
Door and Perimeter Heater Control Logic	Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C	± 0.1%
Temperature Control	Water Jacket
Temperature Control Range	5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution	0.1°C
Temperature Recovery	0.12°C/min. on Average
Temperature Sensor Type	Precision Integrated Circuit
Temperature Set-Point Range	5°C to 55°C (37.0°C Default)
Temperature Uniformity °C	± 0.20°C @ 37°C

Est. Shipping Weight lbs (kg)	370 (168)
Net Weight lbs (kg)	403 (183) includes full water jacket and shelves

CO2 Accuracy	± 0.1%
CO2 Control Logic	Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution	0.1%
CO2 Range	0.1 to 20%, 5% Default Set Point
CO2 Recovery	Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type	Infrared (NDIR)

Segmented Doors

Optional Set of 4 Inner Doors

Access Port Location	Right Side
Chamber Air Filter	99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Exterior Door Seal	Magnetic Outer Door Gasket
Exterior Material	16 Gauge Steel with Textured Polyurethane Finish
In-line Gas Filters	99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors	One Standard, Sectional optional
Insulation	Insulation with R5.0 Rating
Interior Door Seal	Silicone Rubber Gasket
Interior Material	Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location	Inner Glass Door
Shelf Capacity lbs (kg)	25 lbs per Shelf / 125 lbs per Incubator
Shelf Material	Stainless Steel or Copper Alloy
Shelves	4 Shelves Supplied, 16 Shelves Maximum Capacity

Data Output Features	RS-485, USB, 4-20mA
Remote Alarm Terminals	Standard

Est. Shipping Depth Inches (mm)	33 (838)
Est. Shipping Height Inches (mm)	49 (1245)
Est. Shipping Width Inches (mm)	31 (787)
Exterior Depth Inches (mm)	27 (685)
Exterior Height Inches (mm)	37.75 (958)
Exterior Width Inches (mm)	25.625 (649)
Footprint Depth inches (mm)	17.5 (445)
Footprint Width inches (mm)	22 (557)
Interior Depth Inches (mm)	20.625 (524)
Interior Height Inches (mm)	24 (611)
Interior Volume Cubic Feet (Liters)	5.65 (160)
Interior Width Inches (mm)	20.375 (518)
Shelf Depth Inches (mm)	18 3/4 (476)
Shelf Width Inches (mm)	18 (457)
Water Pan Depth	1.5 (38)
Water Pan Length Inches (mm)	12 (305)
Water Pan Width	10 (254)

Electrical Configuration	230V 50/60Hz
Power Cord Length Foot (Meter)	8 (2.5)

Safety Certification

UL, UL-C, UK CA

O2 Accuracy	± 0.25%
O2 Control Logic	Fixed algorithm/ manual environmental adaptable
O2 Display Resolution	0.1%
O2 Measuring Range	0 - 25%
O2 Recovery	5.0 ± 0.5% twenty minutes on Average
O2 Sensor Type	Zirconia Ceramic
O2 Set Point Range	0.5 -21.0% (ambient) (21.0% Default)

Decontamination Cycle

Not available

RH Accuracy	+5% / -3%
RH Control Method	Water Pan
RH Control Range	0 - 100% (RH) / -40°C - +60°C (Temp)
RH Display Resolution	0.1%
RH Sensor Type	Precision capacitance bulk-polymer
RH Water Pan Capacity	2L (Recommended Fill 1.5L)

Chamber Air Circulation Method	Air Pump
Chamber Jacket Technology	Water Jacket, 18 Gallon (68-Liter)
Control System	NuTouch

Chamber Heater(s) Location	Bottom of Chamber
Door and Perimeter Heater Control Logic	Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C	± 0.1%
Temperature Control	Water Jacket
Temperature Control Range	5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution	0.1°C
Temperature Recovery	0.12°C/min. on Average
Temperature Sensor Type	Precision Integrated Circuit
Temperature Set-Point Range	5°C to 55°C (37.0°C Default)
Temperature Uniformity °C	± 0.20°C @ 37°C

Est. Shipping Weight lbs (kg)	370 (168)
Net Weight lbs (kg)	403 (183) includes full water jacket and shelves

Review

Resources

Videos

Specifications

CO2 Incubator Specifications for NU-8600, NU-8625, NU-8631, and NU-8645

BIM Revit

NU-8600 Family of Water Jacket CO2 Incubators 3D Model

Warranty

CO2 Incubator Standard Warranty for US and CA

Options

115V, 60Hz, 15 Amp, NEMA 5-15P, Made in USA
230V, 50/60 Hz, 15 Amp, Type F Plug, Made in USA
230V, 50/60 Hz, 15 Amp, Plug Type G, Made in USA

Stainless Steel Chamber with Floor Mounted Water Pan
Stainless Steel Chamber with Coiling Coil and Floor Mounted Water Pan

Stainless Steel Shelves (Qty 4)
Heavy Duty Stainless Steel Shelves (Qty 4)
Copper Alloy Shelves (Qty 4)

Left Side Door Hinge
Right Hinged Door Swing

Standard Glass Door with Cam Action Lock
Sectioned Inner Door with Cam Action Locks (4 Vertical Sections)

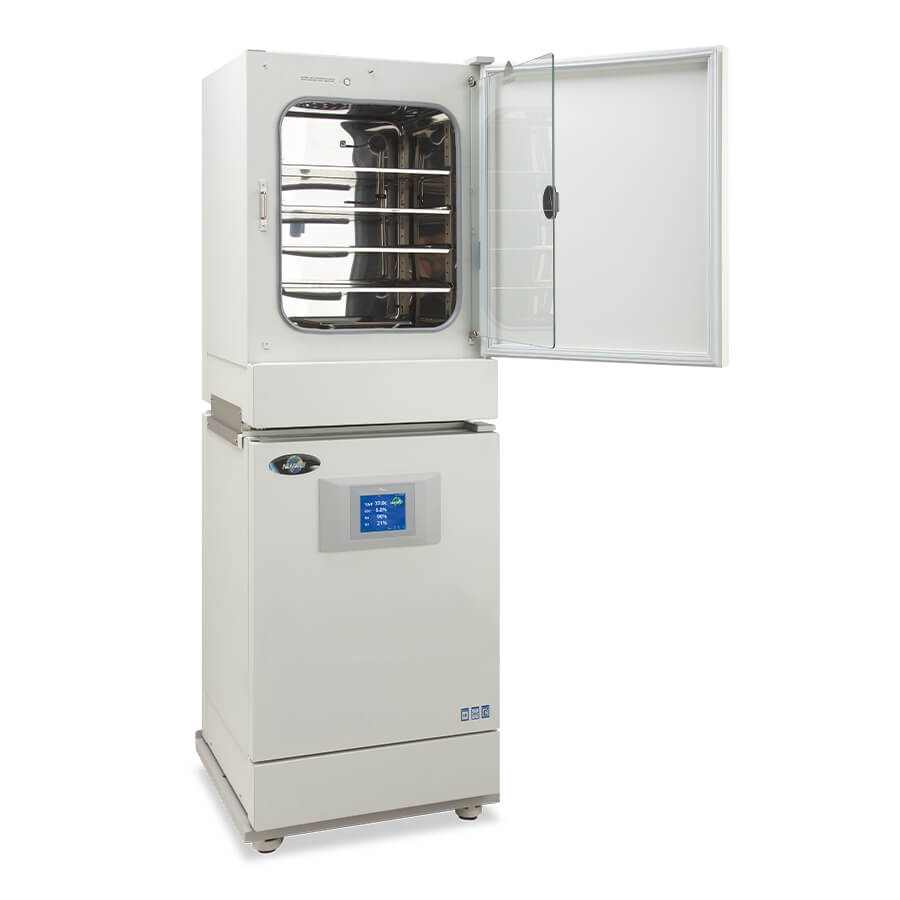

Factory Stacked CO2 Incubators with Qty 1 Castered Platform, Ships Stacked
Stacking Brackets for Water Jacket Models
Stacking Rack, Floor Mount

Platform with Combination Leg Levelers and Casters

Regulator CO2 - Two Stage
Regulator N2 - Two Stage
Tank Switch, External, CO2 or N2
Tubing Kit (1)

Water Pan, Copper Alloy, Qty 1
Water Pan, Stainless Steel, Shelf Mount, Qty 1
Water Pan, Copper Alloy, Shelf Mounted Qty 1
Water Pan, Stainless Steel, Qty 1

CO2 Incubator Copper Alloy Shelf (Qty 1) with Guide Brackets (Qty 2)
CO2 Incubator Shelf, Stainless Steel (Qty 1) with Guide Brackets (Qty 2)
CO2 Incubator Shelf, Stainless Steel, Heavy Duty (Qty 1) with Guide Brackets (Qty 2)
