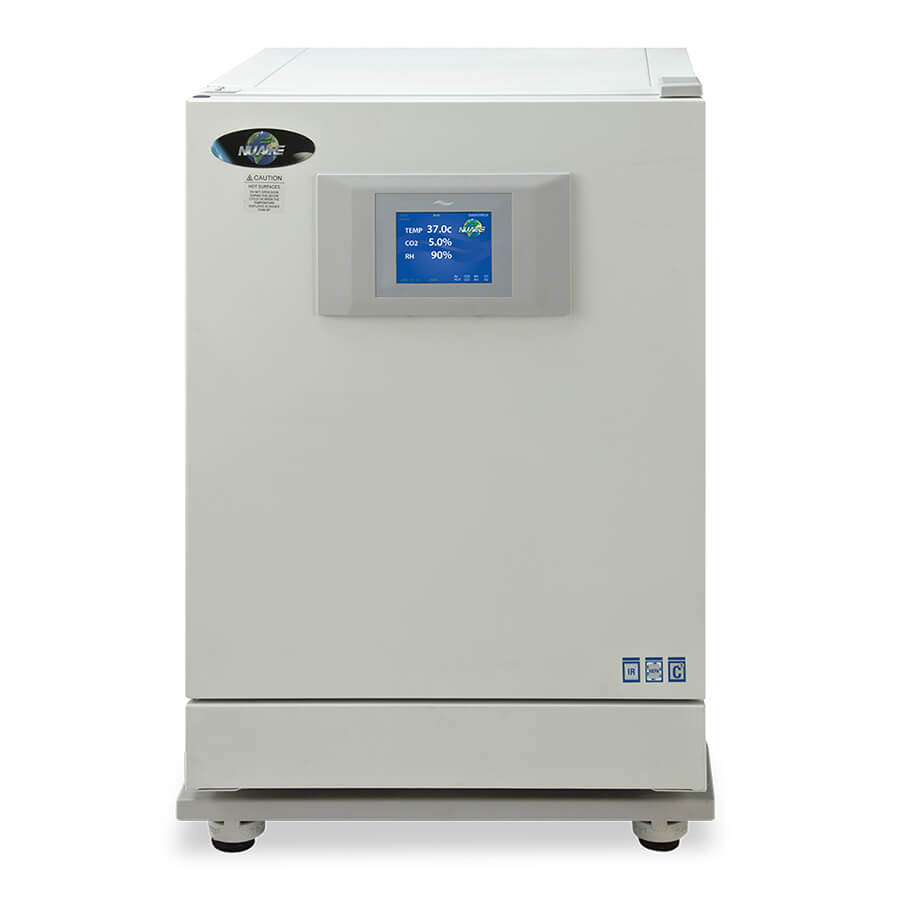

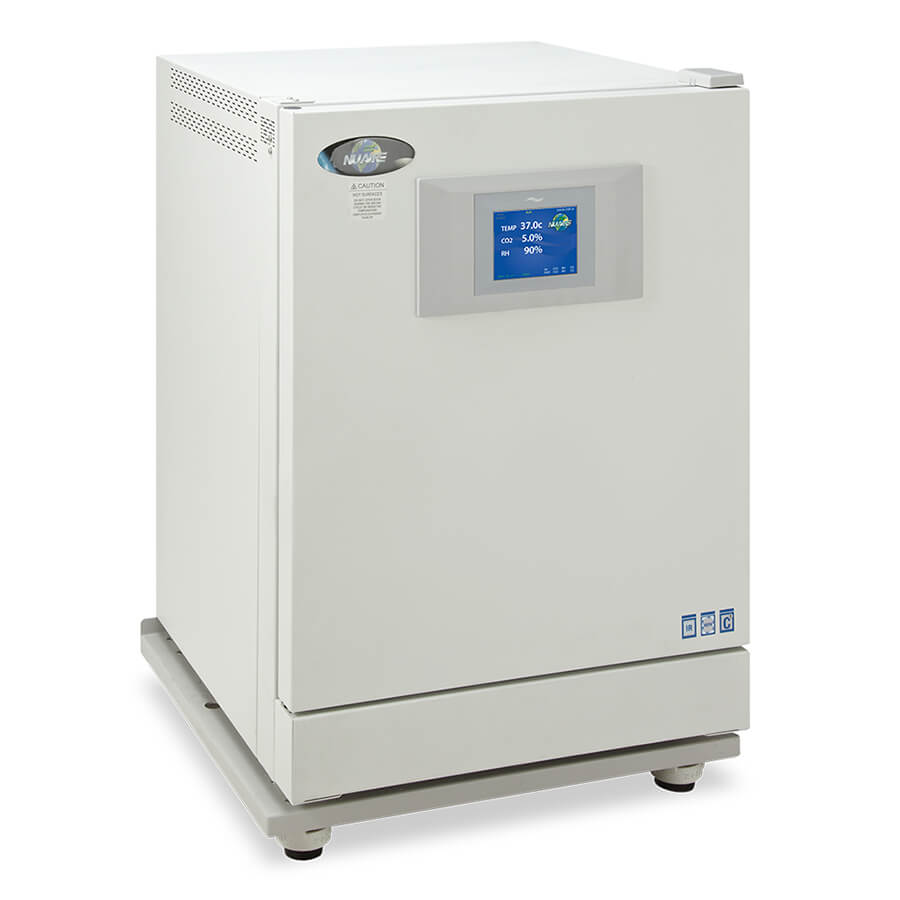

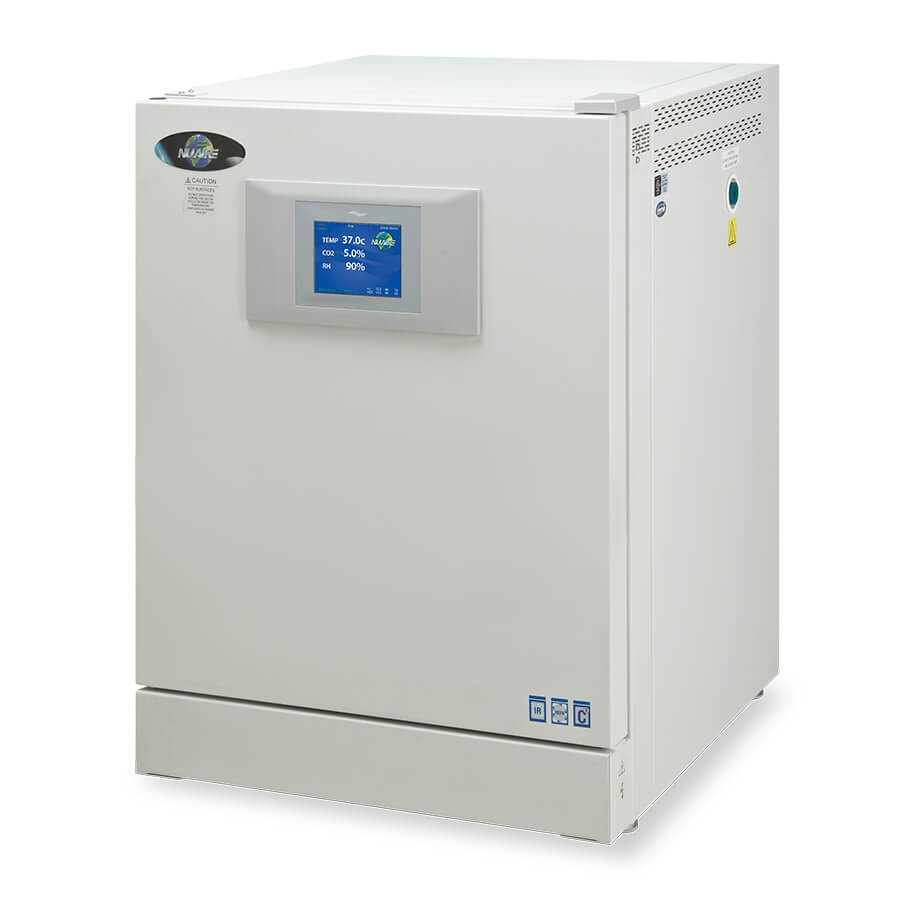

In-VitroCell NU-5720 Direct Heat CO2 Incubator
The In-VitroCell Model NU-5720 is a direct heat 5.65ft3 (160 L) capacity CO2 Incubator featuring humidity monitoring and control using a sensor and a 3-liter reservoir to inject water vapor to meet setpoint. Model NU-5720 provides optimal growth conditions for mammalian cells sensitive to humidity fluctuations.
- Overview
- Specifications
- Reviews
- Resources
- Options
Overview
In-VitroCell model NU-5720 is a CO2 Incubator designed to control relative humidity (RH) levels in the growth chamber better through a sensor and reservoir in place of a water pan. The RH control method allows for greater accuracy to maintain a stable RH percentage by injecting water vapor into the growth chamber to meet the setpoint. RH control is perfect for research samples prone to desiccation or dryer environments.
Precise Humidity Control

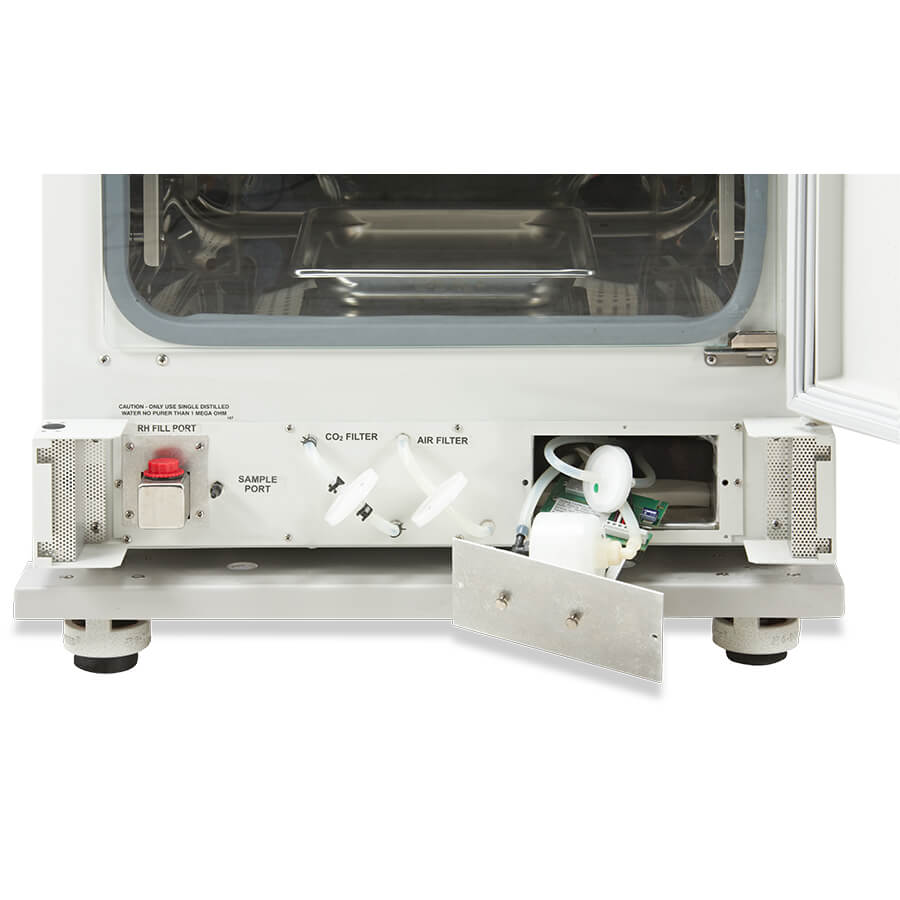

Experience optimal growth conditions in our incubator with its innovative humidity control system. Equipped with a 3-liter external reservoir, it ensures precise relative humidity levels of up to 90% in the growth chamber. The air is skillfully directed through a vapor-saturated evaporate box, adjusting humidity per the RH sensor's feedback to maintain your desired set point. This feature promises consistent, ideal humidity for superior cultivation results.
Dual Decontamination Cycles

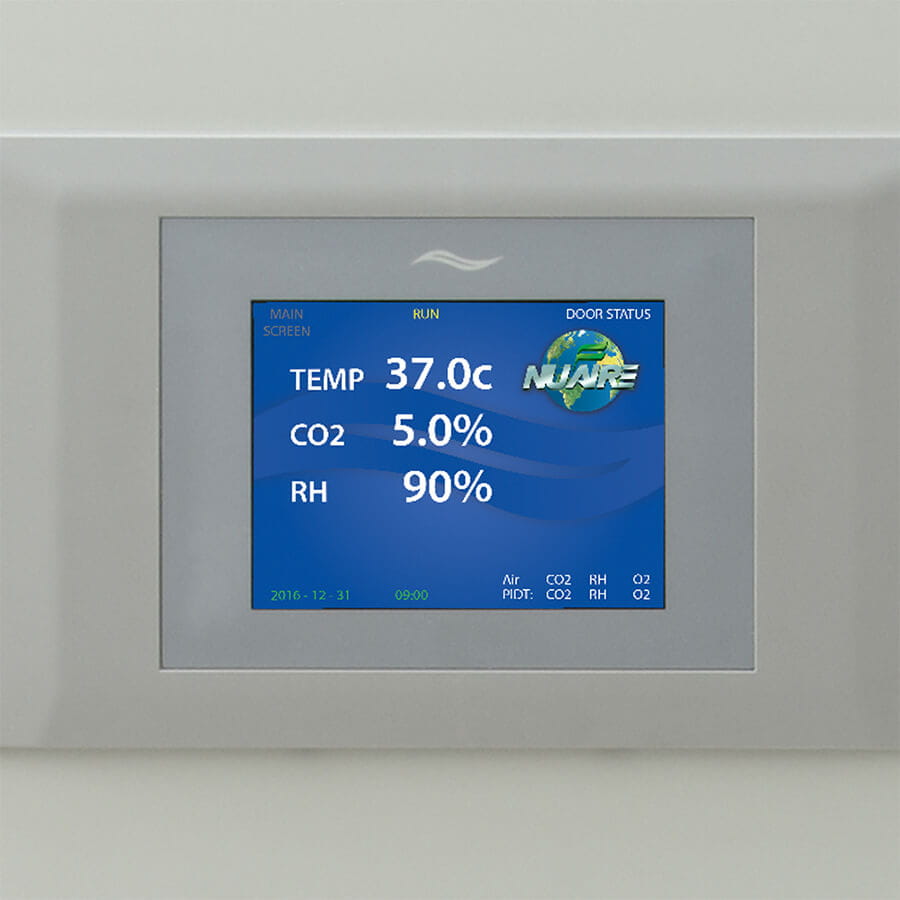

Our incubator's advanced direct heat technology enables a thorough 145°C dry and 95°C humidified decontamination cycle, completed efficiently overnight in just 8 hours. The NuTouch control system offers on-screen instructions and tracks cycle progress, ensuring an effective and user-friendly decontamination process.
Constant Contamination Control
NuAire's advanced features significantly reduce contamination risks in your laboratory. The growth chamber maintains a slight positive pressure to prevent the ingress of contaminated air, ensuring an environment similar to an ISO Class 5 cleanroom, thanks to air and gas passing through 99.99% efficient HEPA filters. The design's smooth, rounded corners further minimize contamination risks. Moreover, our overnight decontamination cycle, reaching 145° Celsius dry or 95° Celsius humidified, offers an effective solution against contamination. Choose NuAire for superior contamination control and enhanced safety in your laboratory.
Advanced IR Sensor Technology
Experience unparalleled precision in CO2 level control within your growth chamber with our advanced single-source dual wave infrared (IR) sensor. This innovative technology focuses on wavelengths absorbed exclusively by CO2, ensuring the measurement remains unaffected by other components like water vapor. The result is a consistently stable output that minimizes drift and reduces the need for frequent calibrations, maintaining optimal pH levels effortlessly. Trust in our cutting-edge sensor design for accurate, reliable, and maintenance-friendly operation in your laboratory.
Specifications
| CO2 Accuracy | ± 0.1% |
| CO2 Control Logic | Fixed Algorithm/Manual, Environmental Adaptable |
| CO2 Display Resolution | 0.1% |
| CO2 Range | 0.1 to 20%, 5% Default Set Point |
| CO2 Recovery | Up to 5% ± 0.2% / -0.5 in 5 minutes Average |
| CO2 Sensor Type | Infrared (NDIR) |
| Segmented Doors | Optional Set of 4 Inner Doors |
| Access Port Location | Right Side |
| Chamber Air Filter | 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay |
| Exterior Door Seal | Magnetic Outer Door Gasket |
| Exterior Material | Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish |
| In-line Gas Filters | 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor |
| Inner Doors | One, Sectioned Optional |
| Insulation | High Density Insulation with High "R" Rating |
| Interior Door Seal | Silicone Rubber Gasket |
| Interior Material | Highly Polished Type 304L 16 Gauge Stainless Steel |
| Sample Port Location | Inner Glass Door |
| Shelf Capacity lbs (kg) | 25 lbs per Shelf / 125 lbs per Incubator |
| Shelf Material | Stainless Steel |
| Shelves | 4 Shelves Supplied, 16 Shelves Maximum Capacity |
| Data Output Features | RS-485, USB, 4-20mA |
| Remote Alarm Terminals | Standard |
| Est. Shipping Depth Inches (mm) | 31 (787) |
| Est. Shipping Height Inches (mm) | 47 (1194) |
| Est. Shipping Width Inches (mm) | 30 (762) |
| Exterior Depth Inches (mm) | 27.500 (699) |
| Exterior Height Inches (mm) | 36.188 (894) |
| Exterior Width Inches (mm) | 25.500 (648) |
| Footprint Depth inches (mm) | 20.825 (530) |
| Footprint Width inches (mm) | 22.625 (575) |
| Interior Depth Inches (mm) | 20.678 (525) |
| Interior Height Inches (mm) | 24.000 (610) |
| Interior Volume Cubic Feet (Liters) | 5.65 (160) |
| Interior Width Inches (mm) | 20.250 (514) |
| Shelf Depth Inches (mm) | 18 3/4 (476) |
| Shelf Width Inches (mm) | 18 (457) |
| Water Pan Depth | 1.5 (38) |
| Water Pan Length Inches (mm) | 12 (305) |
| Water Pan Width | 10 (254) |
| Electrical Configuration | 115V60Hz |
| Power Cord Length Foot (Meter) | 8 (2.5) |
| Safety Certification | UL, UL-C |
| O2 Accuracy | Not Avaiable |
| O2 Control Logic | Not Avaiable |
| O2 Display Resolution | Not Avaiable |
| O2 Measuring Range | Not Avaiable |
| O2 Recovery | Not Avaiable |
| O2 Sensor Type | Not Avaiable |
| O2 Set Point Range | Not Avaiable |
| Decontamination Cycle | 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle |
| RH Accuracy | 95% +5% / -3% |
| RH Control Logic | Fixed algorithm/manual environmental adaptable |
| RH Control Method | Evaporator Box |
| RH Control Range | Ambient dependent to 95% |
| RH Display Resolution | 0.1% |
| RH Evaporator Box Capacity | 3L |
| RH Recovery | 90% +5% / -3% within 25 minutes on average |
| RH Sensor Type | Precision capacitance bulk-polymer |
| RH Water Pan Capacity | 2L (Recommended Fill 1.5L) (For Calibration Only) |
| Chamber Air Circulation Method | Air Pump |
| Chamber Jacket Technology | Air Jacket via Two Axial Fans Drawing Air into Shell |
| Control System | NuTouch |
| Chamber Heater(s) Location | Sides, Bottom, Top and Back of Chamber |
| Door and Perimeter Heater Control Logic | Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable] |
| Temperature Accuracy °C | ± 0.1% |
| Temperature Control | Direct Heat |
| Temperature Control Range | 5°C above ambient (to a 30°C max ambient) to 55°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Recovery | 0.12°C/min. on Average |
| Temperature Sensor Type | Precision Integrated Circuit |
| Temperature Set-Point Range | 5°C to 55°C (37.0°C Default) |
| Temperature Uniformity °C | ± 0.35°C @ 37°C |
| Est. Shipping Weight lbs (kg) | Inquire |
| Net Weight lbs (kg) | 220 lbs. / 100 kg. |
| CO2 Accuracy | ± 0.1% |
| CO2 Control Logic | Fixed Algorithm/Manual, Environmental Adaptable |
| CO2 Display Resolution | 0.1% |
| CO2 Range | 0.1 to 20%, 5% Default Set Point |
| CO2 Recovery | Up to 5% ± 0.2% / -0.5 in 5 minutes Average |
| CO2 Sensor Type | Infrared (NDIR) |
| Segmented Doors | Optional Set of 4 Inner Doors |
| Access Port Location | Right Side |
| Chamber Air Filter | 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay |
| Exterior Door Seal | Magnetic Outer Door Gasket |
| Exterior Material | Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish |
| In-line Gas Filters | 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor |
| Inner Doors | One, Sectioned Optional |
| Insulation | High Density Insulation with High "R" Rating |
| Interior Door Seal | Silicone Rubber Gasket |
| Interior Material | Highly Polished Type 304L 16 Gauge Stainless Steel |
| Sample Port Location | Inner Glass Door |
| Shelf Capacity lbs (kg) | 25 lbs per Shelf / 125 lbs per Incubator |
| Shelf Material | Stainless Steel |
| Shelves | 4 Shelves Supplied, 16 Shelves Maximum Capacity |
| Data Output Features | RS-485, USB, 4-20mA |
| Remote Alarm Terminals | Standard |
| Est. Shipping Depth Inches (mm) | 31 (787) |
| Est. Shipping Height Inches (mm) | 47 (1194) |
| Est. Shipping Width Inches (mm) | 30 (762) |
| Exterior Depth Inches (mm) | 27.500 (699) |
| Exterior Height Inches (mm) | 36.188 (894) |
| Exterior Width Inches (mm) | 25.500 (648) |
| Footprint Depth inches (mm) | 20.825 (530) |
| Footprint Width inches (mm) | 22.625 (575) |
| Interior Depth Inches (mm) | 20.678 (525) |
| Interior Height Inches (mm) | 24.000 (610) |
| Interior Volume Cubic Feet (Liters) | 5.65 (160) |
| Interior Width Inches (mm) | 20.250 (514) |
| Shelf Depth Inches (mm) | 18 3/4 (476) |
| Shelf Width Inches (mm) | 18 (457) |
| Water Pan Depth | 1.5 (38) |
| Water Pan Length Inches (mm) | 12 (305) |
| Water Pan Width | 10 (254) |
| Electrical Configuration | 230V5060Hz |
| Power Cord Length Foot (Meter) | 8 (2.5) |
| Safety Certification | UL, UL-C |
| O2 Accuracy | Not Avaiable |
| O2 Control Logic | Not Avaiable |
| O2 Display Resolution | Not Avaiable |
| O2 Measuring Range | Not Avaiable |
| O2 Recovery | Not Avaiable |
| O2 Sensor Type | Not Avaiable |
| O2 Set Point Range | Not Avaiable |
| Decontamination Cycle | 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle |
| RH Accuracy | 95% +5% / -3% |
| RH Control Logic | Fixed algorithm/manual environmental adaptable |
| RH Control Method | Evaporator Box |
| RH Control Range | Ambient dependent to 95% |
| RH Display Resolution | 0.1% |
| RH Evaporator Box Capacity | 3L |
| RH Recovery | 90% +5% / -3% within 25 minutes on average |
| RH Sensor Type | Precision capacitance bulk-polymer |
| RH Water Pan Capacity | 2L (Recommended Fill 1.5L) (For Calibration Only) |
| Chamber Air Circulation Method | Air Pump |
| Chamber Jacket Technology | Air Jacket via Two Axial Fans Drawing Air into Shell |
| Control System | NuTouch |
| Chamber Heater(s) Location | Sides, Bottom, Top and Back of Chamber |
| Door and Perimeter Heater Control Logic | Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable] |
| Temperature Accuracy °C | ± 0.1% |
| Temperature Control | Direct Heat |
| Temperature Control Range | 5°C above ambient (to a 30°C max ambient) to 55°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Recovery | 0.12°C/min. on Average |
| Temperature Sensor Type | Precision Integrated Circuit |
| Temperature Set-Point Range | 5°C to 55°C (37.0°C Default) |
| Temperature Uniformity °C | ± 0.35°C @ 37°C |
| Est. Shipping Weight lbs (kg) | Inquire |
| Net Weight lbs (kg) | 220 lbs. / 100 kg. |
